De Luxe 48 (Flash-O-Graph) Ch= KW

De Luxe 48 Ch= KW; Fada Radio & (ID = 15973) Radio
De Luxe 48 Ch= KW; Fada Radio & (ID = 695178) Radio De Luxe 48 Ch= KW; Fada Radio & (ID = 695181) Radio
De Luxe 48 Ch= KW; Fada Radio & (ID = 695177) Radio De Luxe 48 Ch= KW; Fada Radio & (ID = 445260) Radio
De Luxe 48 Ch= KW; Fada Radio & (ID = 695179) Radio De Luxe 48 Ch= KW; Fada Radio & (ID = 695180) Radio
De Luxe 48 Ch= KW; Fada Radio & (ID = 706843) Radio De Luxe 48 Ch= KW; Fada Radio & (ID = 1543869) Radio
De Luxe 48 Ch= KW; Fada Radio & (ID = 1543870) Radio De Luxe 48 Ch= KW; Fada Radio & (ID = 1543871) Radio
Use red slider bar for more.
De Luxe 48 Ch= KW; Fada Radio & (ID = 695178) Radio

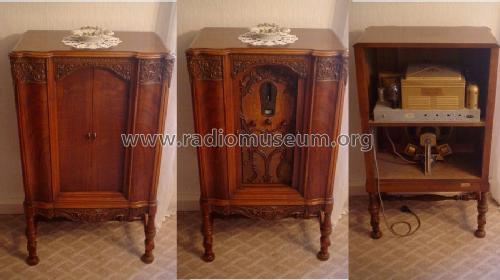

Fada Radio &: De Luxe 48 Ch= KW [Radio] ID = 695178 635x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model De Luxe 48 (Flash-O-Graph) Ch= KW, Fada Radio & Electric Co.; Long Island (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Fada Radio & Electric Co.; Long Island (NY)
alternative name

Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich
Year: 1931 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 35 27 35 35 35 27 27 47 47 80 Flash-O-Graph
Main principle Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: De Luxe 48 Ch= KW - Fada Radio & Electric Co.;
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes The Chassis KW with Flash-O-Graph tuning indicator (neon) is employed in the following Fada models: 48, 49 and 65. These had the first FADA "Automatic Flash-o-Graph" but now it is a 2 element neon indicator, described in this article for early tuning indicators.
Bandfilter circuit between RF and mixer stages. 4 gang variable condenser. Separate oscillator (27). Push-pull audio amplifier.
Collectors' prices
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
Mentioned in Pre-War Consoles
Literature/Schematics (1) Rider's Perpetual, Volume 1 = 1931/1934 (1919 to 1931)


All listed radios etc. from Fada Radio & Electric Co.; Long Island (NY)
Here you find 719 models, 426 with images and 488 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.


Collection of a member from D
