• Year
  • 1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 39787
    • alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich

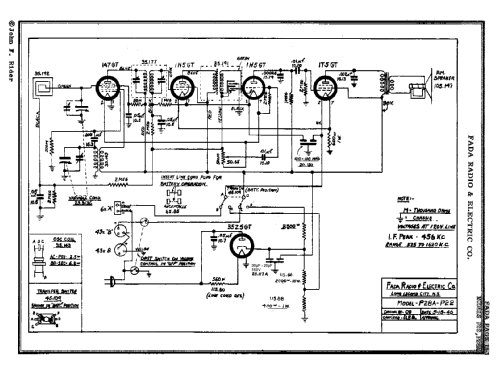

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / 6; 90; 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.4 inch = 11.2 cm
  • from Radiomuseum.org
  • Model: P22 - Fada Radio & Electric Co.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 335 x 230 x 135 mm / 13.2 x 9.1 x 5.3 inch
  • Notes
  • BC (525 - 1620 kHz) band. resistance line cord (Widerstandsnetzleitung)
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 13 = 1942 and before
