For model 58-T-1 Ch= 58, Fairbanks, Morse & Co.; Chicago (IL):
Thanks to ebayer dmtiques

Country:  United States of America (USA)
Manufacturer / Brand:  Fairbanks, Morse & Co.; Chicago (IL)
alternative name

FMC
Brand
Welco
Year: 1936/1937 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8G 6K7G 6Q7G 6F6G 5Y3
Main principle Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 60Hz, 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out 3 W (unknown quality)
from Radiomuseum.org Model: 58-T-1 Ch= 58 - Fairbanks, Morse & Co.;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 18.5 x 10 x 9.25 inch / 470 x 254 x 235 mm
Notes

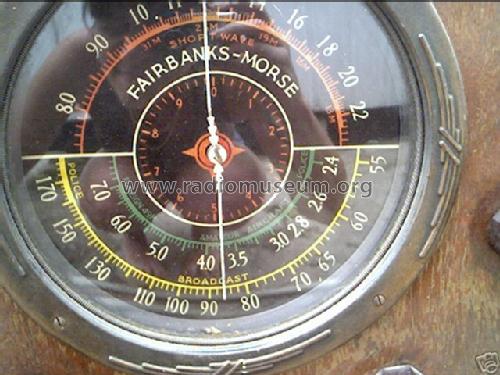

The Fairbanks Morse 58-T-1 is an AC operated, 5 tube BC, Police and SW band receiver.  Uses chassis 58.  Has AGC and 2 stage audio circuit. The three bands cover a frequency tuning range of 540 to 23000kHz. Has 5.5" tuning dial, AVC and a tuning ratio of 8:1.

NOTE: 58 is the chassis number and NOT the model number.

The following models use the same chassis:

Model Number Chassis Cabinet
58-C-1 58 Console
58-T-1 58 Table Model
58-T-2 58 Table Model

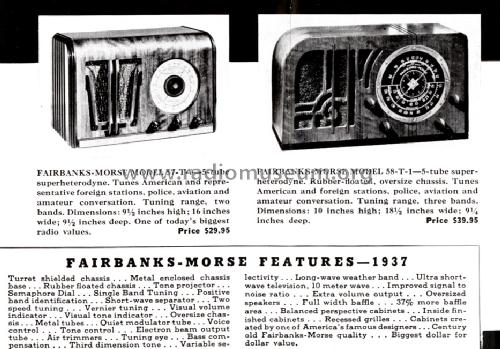

Price in first year of sale 39.95 $
External source of data Ernst Erb - Fairbanks-Morse Folder RA 309 for 1937
Source of data Collector's Guide to Antique Radios 4. Edition
Mentioned in Table Top Radios Vol. 1 Stein 98
Literature/Schematics (1) Rider's Perpetual, Volume 8 = 1937 and before (Fairbanks Morse section, pages 8-23, 8-24)
Literature/Schematics (2) Radio Today (and Television) (June 1936 pg 62, July 1936 pg 5, Sept 1936 pg 51, March 1937 pg 49)
Literature/Schematics (3) Machine Age to Jet Age (Page 232)
Literature/Schematics (4) Gernsback Official Radio Service Manual (Volume 7, page 185)
