For model 5CT3 Ch= 5C, Fairbanks, Morse & Co.; Chicago (IL):
Fairbanks Morse 5C Front View

Country:  United States of America (USA)
Manufacturer / Brand:  Fairbanks, Morse & Co.; Chicago (IL)
alternative name

FMC
Brand
Welco
Year: 1937/1938 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8G 6K7G 6Q7G 6F6G 5Y3
Main principle Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / Either Transformer: 50-60 cycles, 110 or 25-60 cycles, 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 5CT3 Ch= 5C - Fairbanks, Morse & Co.;
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 17.75 x 12.25 x 9.25 inch / 451 x 311 x 235 mm
Notes

The Fairbanks Morse 5CT3 is an AC operated, 5 tube BC, Police and SW band receiver. Has 5.5" dial with a 16:1 tuning ratio.  Also has AVC and 2 stage audio circuit.

Band Frequency Ranges are as follows:
BC Band......................540 - 1730kHz
Police Band.................1.7 - 5.7MHz
SW Band....................5.6 - 18.3MHz

The 6A chassis is similar to chassis 5C except 5C has no eye tube.

The following models use the 5C and 6A chassis and schematic:

Model Number Chassis Tuning Eye Tube Cabinet
5CT3 5C No Table Model
6AT4 6A Yes Table Model
6AC-1 6A Yes Console Model
6AC-7 6A Yes Chairside Model

NOTE: 5C is the chassis number and NOT the model number

Price in first year of sale 39.95 USD !
Source of data - - Manufacturers Literature
Mentioned in A Blast from the Past

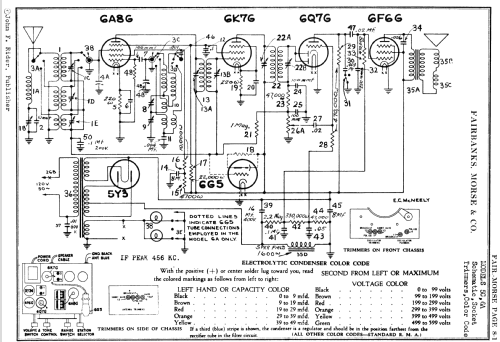

Literature/Schematics (1) Gernsback Official Radio Service Manual (Volume 7, pages 1201, 1202)
Literature/Schematics (2) Rider's Perpetual, Volume 8 = 1937 and before (Pages 8-1, 8-2)
Literature/Schematics (3) Machine Age to Jet Age III (Page 93)
Literature/Schematics (4) Radio Today (and Television) (June 1937, page 117)

Model page created by John Kusching. See "Data change" for further contributors.
