For model 72-T-3 Ch= 72, Fairbanks, Morse & Co.; Chicago (IL):
Ebay Seller: coolradios Item Number: 263306185213

Country:  United States of America (USA)
Manufacturer / Brand:  Fairbanks, Morse & Co.; Chicago (IL)
alternative name

FMC
Brand
Welco
Year: 1936/1937 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6K7G 6A8G 6K7G 6Q7G 6E5 6L6 5Y3
Main principle Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out 5 W (unknown quality)
from Radiomuseum.org Model: 72-T-3 Ch= 72 - Fairbanks, Morse & Co.;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 20.625 x 12.375 x 10.625 inch / 524 x 314 x 270 mm
Notes

The Fairbanks Morse 72-T-3 is an AC operated, 7 tube BC, Police and SW band receiver. Uses chassis 72. Has tuning eye tube, 5.5" dial and two speed tuning using 40:8:1 ratio.

Band Frequency Ranges are as follows:
BC Band............................540 - 1750kHz
Police Band.......................2.35 - 7.7MHz
SW Band..........................7.5 - 23.0MHz

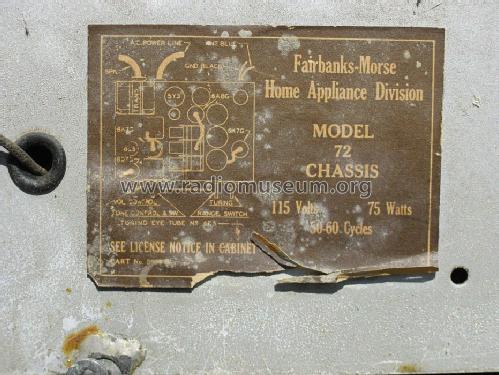

NOTE: 72 is the chassis number and NOT the model number.

The following models use the same chassis:

Model Number Chassis Cabinet
72-C-2 72 Console
72-C-3 72 Console
72-T-3 72 Table
Price in first year of sale 54.95 $
External source of data Ernst Erb - Fairbanks-Morse Folder RA 309 for 1937
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Mentioned in Machine Age to Jet Age II (Page 125)
Literature/Schematics (1) Rider's Perpetual, Volume 8 = 1937 and before (Fairbanks Morse section pages 8-29, 8-30)
Literature/Schematics (2) Gernsback Official Radio Service Manual (Volume 7, pages 362, 363)

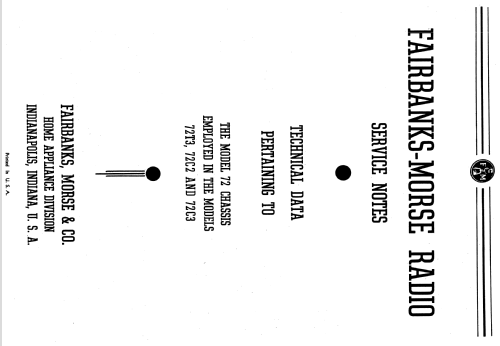

Literature/Schematics (3) - - Manufacturers Literature (Fairbanks-Morse Service Notes - Model 72 Chassis)
Literature/Schematics (4) Radio Today (and Television) (Sept 1936 pg 51, March 1937 pg49, August 1937 pg 71)
