For model 255A, Fairchild Recording Equipment Corp.; Whitestone NY

Country:  United States of America (USA)
Manufacturer / Brand:  Fairchild Recording Equipment Corp.; Whitestone NY
Year: 1956 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 5: 6AB4 12AU7 EL34 EL34 GZ34
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker - This model requires external speaker(s).
Power out 30 W (undistorted)
from Radiomuseum.org Model: 255A - Fairchild Recording Equipment
Material Metal case, TUBES VISIBLE
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 6 x 9 x 6 inch / 152 x 229 x 152 mm
Notes

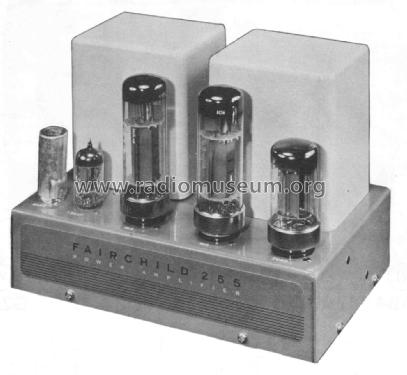

Fairchild model 255A is an AC operated 30 watt audio amplifier.

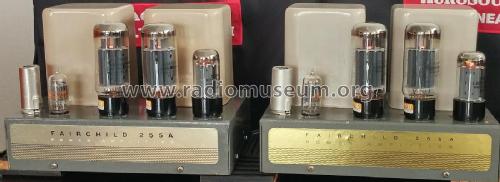

30 Watts EL34 version of the Fairchild 255.





Price in first year of sale 89.50 USD

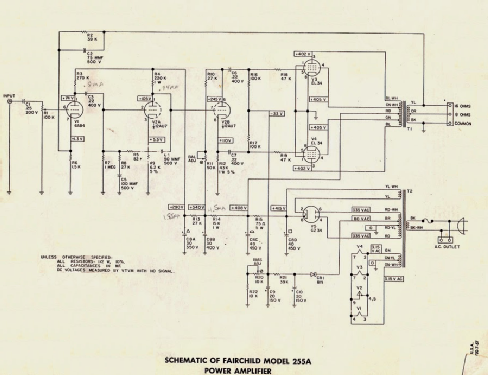

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 371 Folder 3 dated 9-57)

Model page created by Brice Hamon. See "Data change" for further contributors.
