• Country
• United States of America (USA)

• Manufacturer / Brand
• Fairchild Camera and Instrument Corp.; Clifton, N.J.

• Year
• 1965

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 250576

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• F7660-0-P31

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115; 230 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

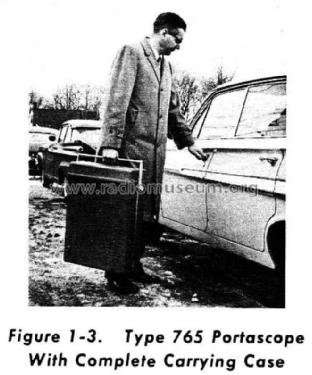

• Model: Portascope 765H - Fairchild Camera and

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 17.75 x 8.25 x 23 inch / 451 x 210 x 584 mm

• Notes

• Neben diesem transportabelen Modell Type 765H (H= High Voltage) gibt es das Tischmodell
  Type 766H und das Rack Modell 767H.

  Zu den Geräten gehören 2 Einschübe:
  Delaying Sweep Type 74-11A und
  Dual Trace Type 76-08

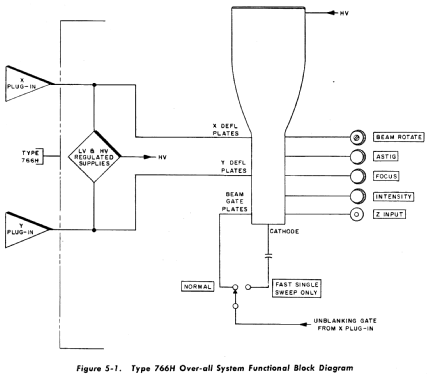

  There is also a Bench Model Type 766H and a Rack-Mounted Modell Type 767H.

  The modells need 2 plugin-devices:
  Delaying Sweep Type 74-11A und
  Dual Trace Type 76-08


• Net weight (2.2 lb = 1 kg)
• 18 lb (18 lb 0 oz) / 8.172 kg

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.
