4 Band Radio Cassette Recorder RD-803

Fair Mate (Marke / brand)

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 351825

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 50 Hz, 220 / 9 / R20: 6 x 1.5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 4 Band Radio Cassette Recorder RD-803 - Fair Mate Marke / brand
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

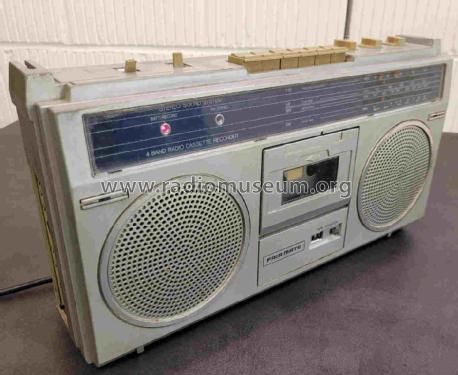

  • 4Band Radio Cassette (Boombox) Model Fair Mate Stereo Sound System RD-803

    Frequency Range:

    • AM 525 - 1605 kHz
    • FM 88 - 104 MHz
    • LW 150 - 300 kHz
    • SW 6 - 18 MHz

    Frontloading Standard Cassette Player / Recorder
    3-Digit Analog Tape Counter
    Battery & /Record Indicator

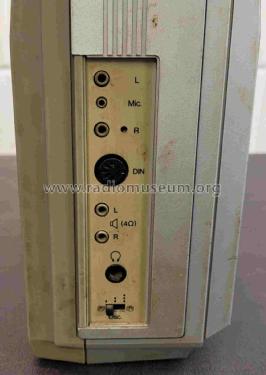

    Earphone Jack
    Mic L&R IN
    Ext. Speaker L&R 4 Ohms
    9 VDC IN
    Telescopic antenna
    Carrying Handle

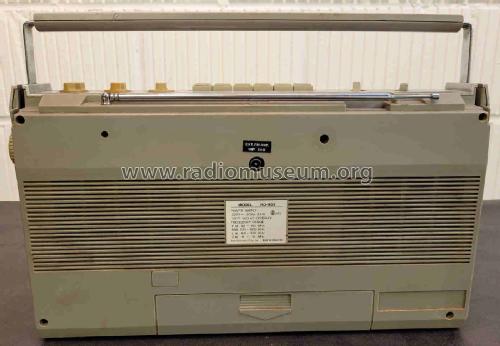

    Power Consumption 220VAC 50 Hz - 9.5 Watts

    Made in Singapore - Asahi Electronics

  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
