• Country
• France

• Manufacturer / Brand
• Familial Radio, G. Dubois; Fourmies, Paris, Glageon

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 274142

• Number of Tubes
• 6

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220: 245 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Sparkley 627 - Familial Radio, G. Dubois;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 270 x 220 mm / 23.6 x 10.6 x 8.7 inch

• Notes

• Radio à 3 bandes de réception: GO, PO et OC (16-50m).

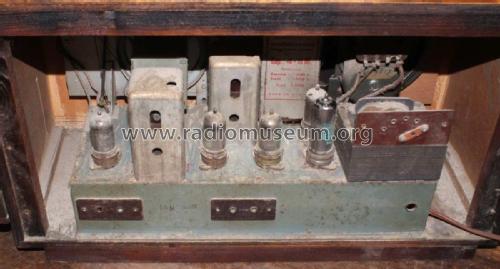

  6 lampes Rimlock. Glace miroir.

• Mentioned in
• Pub in Toute La Radio No 150 November 1950

• Author
• Model page created by Manfred Rathgeb. See "Data change" for further contributors.
