Sine/Square Oscillator LFM2

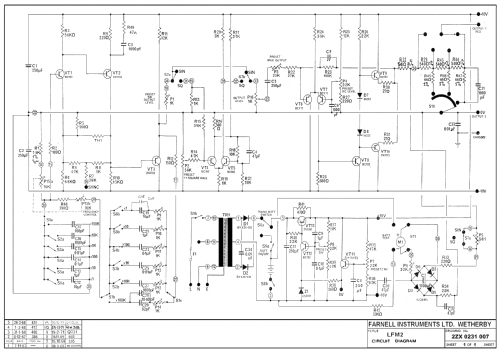

Sine/Square Oscillator LFM2; Farnell A.C. Ltd.; (ID = 1661963) Equipment
Sine/Square Oscillator LFM2; Farnell A.C. Ltd.; (ID = 2298798) Equipment Sine/Square Oscillator LFM2; Farnell A.C. Ltd.; (ID = 2298799) Equipment
Sine/Square Oscillator LFM2; Farnell A.C. Ltd.; (ID = 2298800) Equipment Sine/Square Oscillator LFM2; Farnell A.C. Ltd.; (ID = 2298801) Equipment
Sine/Square Oscillator LFM2; Farnell A.C. Ltd.; (ID = 1661932) Equipment
Use red slider bar for more.
Sine/Square Oscillator LFM2; Farnell A.C. Ltd.; (ID = 2298798) Equipment
Farnell A.C. Ltd.;: Sine/Square Oscillator LFM2 [Equipment] ID = 2298798 1400x983
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sine/Square Oscillator LFM2, Farnell A.C. Ltd.; Leeds

Country:  Great Britain (UK)
Manufacturer / Brand:  Farnell A.C. Ltd.; Leeds
Brand

WAL
Year: 1968 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 13:
Wave bands - without
Details
Power type and voltage Line / Batteries (any type) / 95-130; 190-260 / 3 x 9 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Sine/Square Oscillator LFM2 - Farnell A.C. Ltd.; Leeds
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 256 x 244 x 152 mm / 10.1 x 9.6 x 6 inch
Notes

Frequency range:
1Hz to 1MHz in six ranges selected by push buttons.
Scale accuracy:
within +/-2% or 0.25Hz, whichever is greater Harmonic distortion: <0.5% between 10Hz and 100kHz, otherwise <2%.
Square wave rise time: <0.15 microseconds.
Frequency stability: within 0.2% over 8 hours.
Amplitude stability: <2% between 10Hz and 100kHz, otherwise <5%.
Output voltage:
1mV to 12V peak to peak in four ranges with peak to peak value displayed on an analogue meter



Net weight (2.2 lb = 1 kg) 4.640 kg / 10 lb 3.5 oz (10.22 lb)

Model page created by Gwyn Griffiths. See "Data change" for further contributors.
