Capehart 114N2 Early Georgian

Capehart 114N2 Early Georgian ; Farnsworth (ID = 356681) Radio

Capehart 114N2 Early Georgian ; Farnsworth (ID = 356682) Radio

Capehart 114N2 Early Georgian ; Farnsworth (ID = 356683) Radio

Capehart 114N2 Early Georgian ; Farnsworth (ID = 356684) Radio

Capehart 114N2 Early Georgian ; Farnsworth (ID = 356685) Radio

Capehart 114N2 Early Georgian ; Farnsworth (ID = 356686) Radio

Capehart 114N2 Early Georgian ; Farnsworth (ID = 356687) Radio

Capehart 114N2 Early Georgian ; Farnsworth (ID = 356688) Radio

Capehart 114N2 Early Georgian ; Farnsworth (ID = 356689) Radio
Capehart 114N2 Early Georgian ; Farnsworth (ID = 1308963) Radio Capehart 114N2 Early Georgian ; Farnsworth (ID = 1308964) Radio
Capehart 114N2 Early Georgian ; Farnsworth (ID = 1308966) Radio Capehart 114N2 Early Georgian ; Farnsworth (ID = 1308967) Radio
Capehart 114N2 Early Georgian ; Farnsworth (ID = 1308968) Radio Capehart 114N2 Early Georgian ; Farnsworth (ID = 1308970) Radio
Capehart 114N2 Early Georgian ; Farnsworth (ID = 1308971) Radio Capehart 114N2 Early Georgian ; Farnsworth (ID = 1308972) Radio
Capehart 114N2 Early Georgian ; Farnsworth (ID = 1308965) Radio Capehart 114N2 Early Georgian ; Farnsworth (ID = 1308969) Radio
Use red slider bar for more.
Capehart 114N2 Early Georgian ; Farnsworth (ID = 1308963) Radio

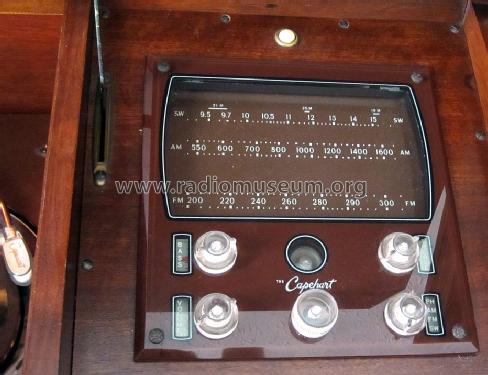

Farnsworth: Capehart 114N2 Early Georgian [Radio] ID = 1308963 933x1142
Select picture or schematic to display from thumbnails on the right and click for download.
For model Capehart 114N2 Early Georgian, Farnsworth Television & Radio Corp. - see also Capehart:
By courtesy of guest Robert Barnett, Maryland, USA.

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1946–1948 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 25: 6SK7 6J5 6SA7 6SK7 6AF6 6SK7 6H6 6AG5 6C4 6AG5 6SK7 6SK7 6SK7 6H6 6SN7 6J7 6SN7 6J5 6J5 6J5 6J5 6L6G 6L6G 5U4G 5U4G
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Record-Changer, both sides!
Power type and voltage Alternating Current supply (AC) / 245 Watts, 60 cycles, 117 = 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 inch = 38.1 cm
Power out 18.5 W (undistorted)
from Radiomuseum.org Model: Capehart 114N2 Early Georgian - Farnsworth Television & Radio
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 39 x 38.5 x 21.5 inch / 991 x 978 x 546 mm
Notes

The Panamuse models 112N2 and 114N2 have 18 Watts undistorted power output for 8 ohms voice coil. Response linear from 50 to 12000 cycles. Alnico two cone loudspeaker of 15 + 5" coaxial. The combined voice-coil impedance of the 2 units is 8 ohms. Record changer 41-E. See here the "Common information for the Capehart model pages for the 1930s and 1940s". An overview about the Series 100 see here.. See here the very well done and instructive YouTube video with the turn-over changer in action.

Robert Barnett noted the following measures: 39 inches wide (allowing for top lid overhang on both sides). 38 1/2 inches tall, 21 1/2 inches deep. It seems that the "official measures" of 40.75 x 40.75 x 23.75 are including some packing.


Price in first year of sale 1'145.00 $
Mentioned in The Incomparable Capehart
Literature/Schematics (1) Rider's Perpetual, Volume 18 = covering late 1947 to early 1948 (Farnsworth 18-16 to 18-44, RCD.CH Capehart 18-25 for 41-E.)

Model page created by Dirk Taekels. See "Data change" for further contributors.
