88P66BNL ; Farnsworth (ID = 1629717) Radio

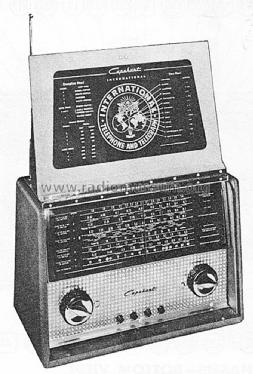

Farnsworth: 88P66BNL [Radio] ID = 1629717 933x1378
Select picture or schematic to display from thumbnails on the right and click for download.
For model 88P66BNL, Farnsworth Television & Radio Corp. - see also Capehart:
Picture from Sams PhotoFact

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1U4 1L6 1U4 1U5 3V4
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / ACDC: 105-120; Bat.: 9 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 88P66BNL - Farnsworth Television & Radio
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 17.375 x 12.5 x 9.5 inch / 441 x 318 x 241 mm
Notes

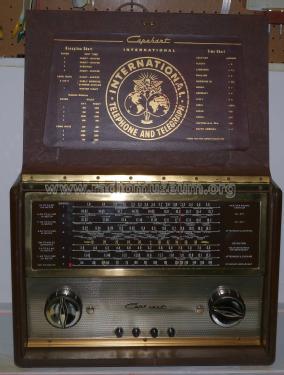

Capehart three power portable Multi-Band Receiver Model 88P66BNL.
Tuning Range:
Band1: 1,8 - 3,9 MC
Band2: 14,62 - 15,7 MC
Band3: 17,32 - 18,2 MC
Band4: 9,22 - 10,3 MC
Band5: 3,9 - 8,0 MC
Band6: 11,42 - 12,3 MC
Band 7: 540  - 1600 KC
LW: 180 - 400 KC

Eliptical speaker is 5 x 7 inch

Net weight (2.2 lb = 1 kg) 22 lb 12 oz (22.75 lb) / 10.329 kg

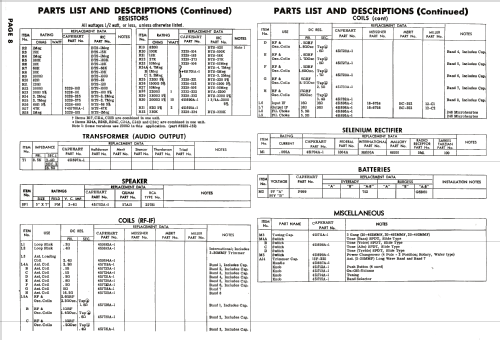

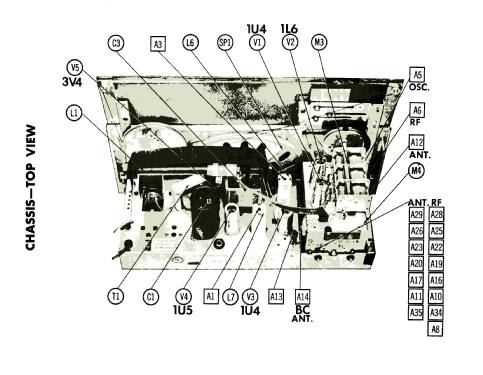

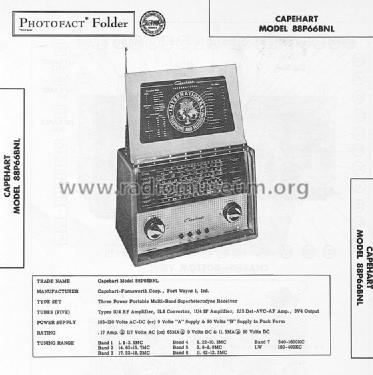

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 331 Folder 3 dated 9-56)

Model page created by Franz Scharner. See "Data change" for further contributors.
