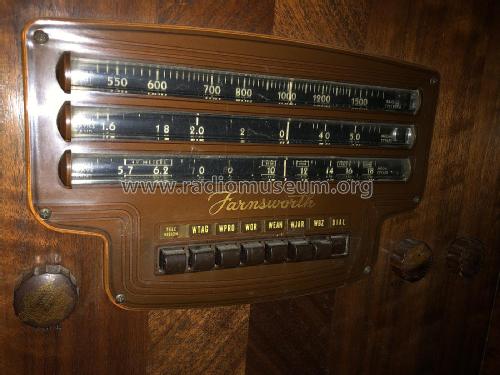

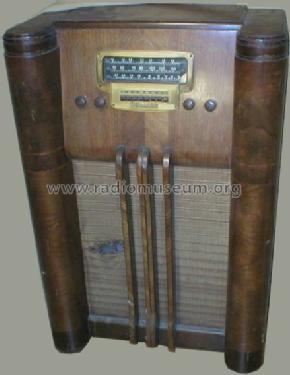

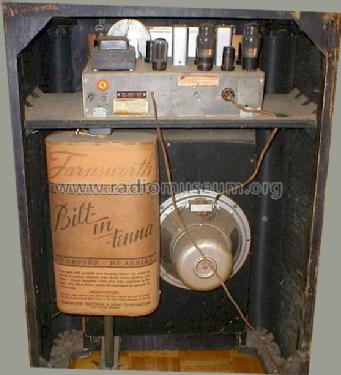

Farnsworth: AC-90 Ch= C4-1 [Radio] ID = 2330936 1400x1867
Select picture or schematic to display from thumbnails on the right and click for download.
For model AC-90 Ch= C4-1, Farnsworth Television & Radio Corp. - see also Capehart:
Picture from Nancy Mirken

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 6SK7 6J5GT 6SA7 6SK7 6H6 6SQ7 6SF5 6V6G 6V6G 5Y3G
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: AC-90 Ch= C4-1 - Farnsworth Television & Radio
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 29.5 x 40.2 x 12.2 inch / 749 x 1021 x 310 mm
Notes Built-in loop antenna.
Net weight (2.2 lb = 1 kg) 33.5 kg / 73 lb 12.6 oz (73.789 lb)
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Complete 1940 Farnsworth Radio Service Notes
Literature/Schematics (2) Pre-War Consoles
