AK-76 Ch= C3-2, changer S30

AK-76 Ch= C3-2, changer S30; Farnsworth (ID = 184147) Radio
AK-76 Ch= C3-2, changer S30; Farnsworth (ID = 706917) Radio
Use red slider bar for more.
AK-76 Ch= C3-2, changer S30; Farnsworth (ID = 706917) Radio
Farnsworth: AK-76 Ch= C3-2, changer S30 [Radio] ID = 706917 588x676
Select picture or schematic to display from thumbnails on the right and click for download.
For model AK-76 Ch= C3-2, changer S30, Farnsworth Television & Radio Corp. - see also Capehart:
Image Courtesy of Mark V. Stein for Radiomuseum.org use only.

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1939/1940 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6SK7 6J5GT 6SA7 6SK7 6H6 6SQ7 6V6G 5Y3G
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: AK-76 Ch= C3-2, changer S30 - Farnsworth Television & Radio
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 33.5 x 36.3 x 15.5 inch / 851 x 922 x 394 mm
Notes

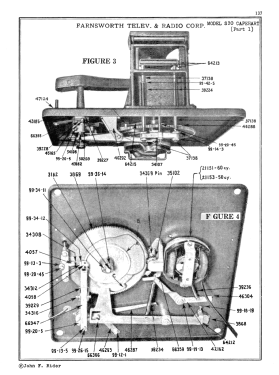

For the record changer see also this text about Capehart Radio-Phonographs, technical information Rider's page 136 - 142 for changer S30.

Shielded rotating loop anteanna.

Net weight (2.2 lb = 1 kg) 58.9 kg / 129 lb 11.8 oz (129.736 lb)
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Complete 1940 Farnsworth Radio Service Notes
Literature/Schematics (2) Pre-War Consoles
Literature/Schematics (3) Rider's Automatic Record Changers and Recorders (page 136-142)
