AK-95 Ch= C4-2, changer S30

AK-95 Ch= C4-2, changer S30; Farnsworth (ID = 184150) Radio
AK-95 Ch= C4-2, changer S30; Farnsworth (ID = 706919) Radio
Use red slider bar for more.
AK-95 Ch= C4-2, changer S30; Farnsworth (ID = 706919) Radio

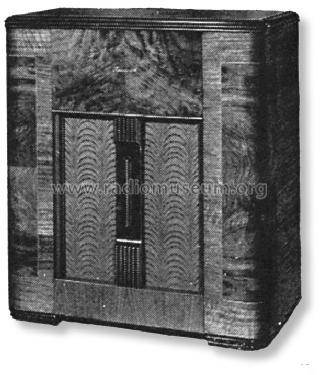

Farnsworth: AK-95 Ch= C4-2, changer S30 [Radio] ID = 706919 617x717
Select picture or schematic to display from thumbnails on the right and click for download.
For model AK-95 Ch= C4-2, changer S30, Farnsworth Television & Radio Corp. - see also Capehart:
Image Courtesy of Mark V. Stein for Radiomuseum.org use only.

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1939/1940 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 6SK7 6J5GT 6SA7 6SK7 6H6 6SQ7 6SF5 6V6G 6V6G 5Y3G
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: AK-95 Ch= C4-2, changer S30 - Farnsworth Television & Radio
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 35 x 36 x 18.5 inch / 889 x 914 x 470 mm
Notes

For the record changer see also this text about Capehart Radio-Phonographs, technical information Rider's page 136 - 142 for changer S30.

Shielded rotating loop antenna.

Net weight (2.2 lb = 1 kg) 68.1 kg / 150 lb 0 oz (150 lb)
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Complete 1940 Farnsworth Radio Service Notes
Literature/Schematics (2) Pre-War Consoles

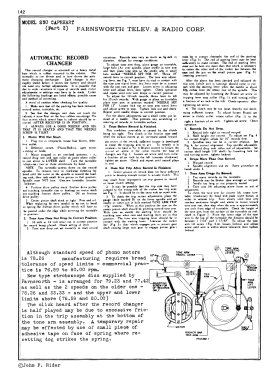

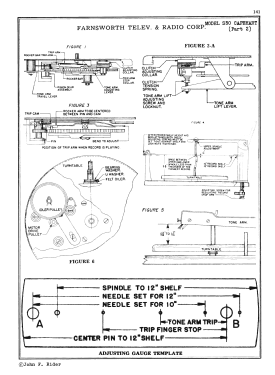

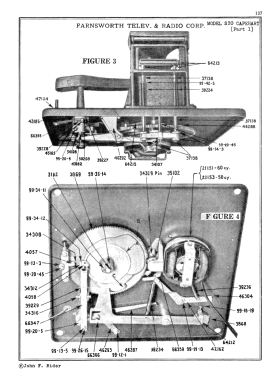

Literature/Schematics (3) Rider's Automatic Record Changers and Recorders (page 136-142)
