AT-14 Ch= C1-2

AT-14 Ch= C1-2; Farnsworth (ID = 183463) Radio

AT-14 Ch= C1-2; Farnsworth (ID = 183538) Radio

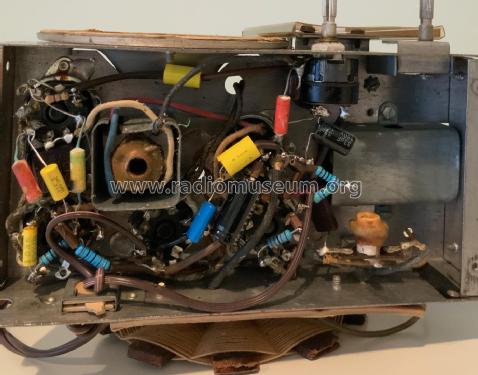

AT-14 Ch= C1-2; Farnsworth (ID = 2514900) Radio AT-14 Ch= C1-2; Farnsworth (ID = 2514901) Radio

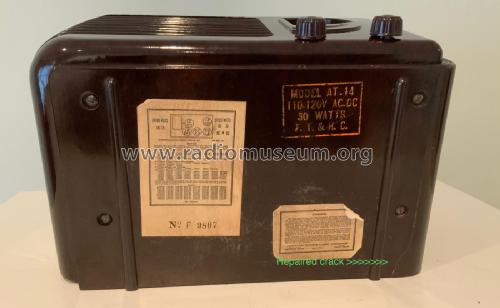

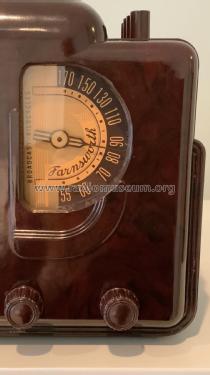

AT-14 Ch= C1-2; Farnsworth (ID = 2514903) Radio AT-14 Ch= C1-2; Farnsworth (ID = 2514902) Radio

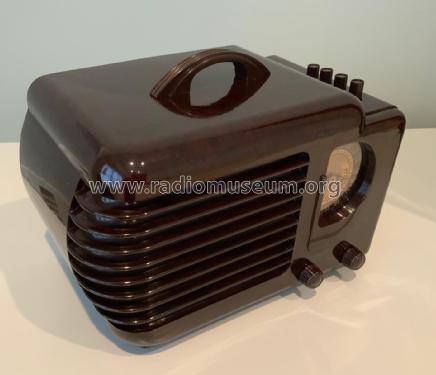

AT-14 Ch= C1-2; Farnsworth (ID = 2514899) Radio AT-14 Ch= C1-2; Farnsworth (ID = 1414549) Radio
Use red slider bar for more.
AT-14 Ch= C1-2; Farnsworth (ID = 2514900) Radio

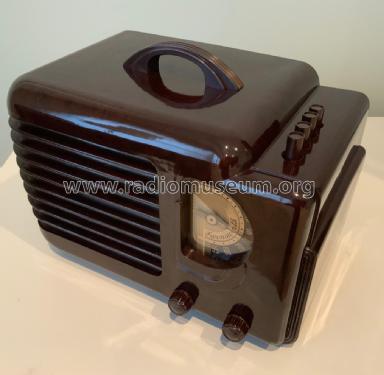

Farnsworth: AT-14 Ch= C1-2 [Radio] ID = 2514900 1400x1366
Select picture or schematic to display from thumbnails on the right and click for download.
For model AT-14 Ch= C1-2, Farnsworth Television & Radio Corp. - see also Capehart:
Greg Mercurio

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12K7GT 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 3.4 W (unknown quality)
from Radiomuseum.org Model: AT-14 Ch= C1-2 - Farnsworth Television & Radio
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 11 x 6.7 x 6.3 inch / 279 x 170 x 160 mm
Notes

Built-in loop antenna.

Available in brown bakelite, ivory plaskon and beetle.

Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
External source of data Ernst Erb
Source of data Table Top Radios Vol. 1 Stein 98
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Literature/Schematics (1) Complete 1940 Farnsworth Radio Service Notes


All listed radios etc. from Farnsworth Television & Radio Corp. - see also Capehart
Here you find 392 models, 278 with images and 321 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
