ATL-10 Ch= C1-1

ATL-10 Ch= C1-1; Farnsworth (ID = 183459) Radio

ATL-10 Ch= C1-1; Farnsworth (ID = 183542) Radio
ATL-10 Ch= C1-1; Farnsworth (ID = 2136153) Radio ATL-10 Ch= C1-1; Farnsworth (ID = 2136154) Radio

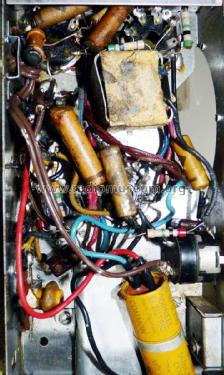

ATL-10 Ch= C1-1; Farnsworth (ID = 2136156) Radio ATL-10 Ch= C1-1; Farnsworth (ID = 2137841) Radio
Use red slider bar for more.
ATL-10 Ch= C1-1; Farnsworth (ID = 2136153) Radio
Farnsworth: ATL-10 Ch= C1-1 [Radio] ID = 2136153 1100x857
Select picture or schematic to display from thumbnails on the right and click for download.
For model ATL-10 Ch= C1-1, Farnsworth Television & Radio Corp. - see also Capehart:
Bakelite cabinet with hole repaired and clear acrylic finish.

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12K7GT 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 3.4 W (unknown quality)
from Radiomuseum.org Model: ATL-10 Ch= C1-1 - Farnsworth Television & Radio
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 11 x 6.7 x 6.3 inch / 279 x 170 x 160 mm
Notes Built-in loop antenna.
Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Literature/Schematics (1) Complete 1940 Farnsworth Radio Service Notes
