BC-601

BC-601 ; Farnsworth (ID = 338450) Radio

BC-601 ; Farnsworth (ID = 338451) Radio
BC-601 ; Farnsworth (ID = 1300078) Radio BC-601 ; Farnsworth (ID = 1300079) Radio
Use red slider bar for more.
BC-601 ; Farnsworth (ID = 1300078) Radio
Farnsworth: BC-601 [Radio] ID = 1300078 600x841
Select picture or schematic to display from thumbnails on the right and click for download.
For model BC-601, Farnsworth Television & Radio Corp. - see also Capehart:

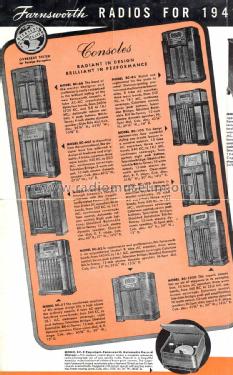

Scanned from the Farnsworth Folder "Radios for 1941...".

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SA7 6J5GT 6SK7 6SQ7 6K7GT 6X5GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: BC-601 - Farnsworth Television & Radio
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 27.5 x 40.25 x 14 inch / 699 x 1022 x 356 mm
Notes

Built in screen antenna. Three wave bands 540 kc to 22.0 mc.

Collectors' prices
External source of data Ernst Erb
Source of data Pre-War Consoles
Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
