BK-106 changer P2

BK-106 changer P2; Farnsworth (ID = 337156) Radio

BK-106 changer P2; Farnsworth (ID = 337158) Radio
BK-106 changer P2; Farnsworth (ID = 598416) Radio BK-106 changer P2; Farnsworth (ID = 598422) Radio
BK-106 changer P2; Farnsworth (ID = 598417) Radio BK-106 changer P2; Farnsworth (ID = 598418) Radio
BK-106 changer P2; Farnsworth (ID = 598419) Radio BK-106 changer P2; Farnsworth (ID = 598421) Radio
BK-106 changer P2; Farnsworth (ID = 598423) Radio BK-106 changer P2; Farnsworth (ID = 598425) Radio
BK-106 changer P2; Farnsworth (ID = 1301252) Radio BK-106 changer P2; Farnsworth (ID = 1301253) Radio
Use red slider bar for more.
BK-106 changer P2; Farnsworth (ID = 598416) Radio

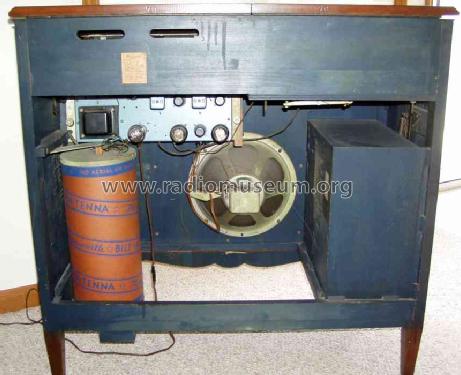

Farnsworth: BK-106 changer P2 [Radio] ID = 598416 560x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model BK-106 changer P2, Farnsworth Television & Radio Corp. - see also Capehart

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1940/1941 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 6SK7 6SA7 6J5GT 6SK7 6SQ7 6SQ7 6SQ7 6V6G 6V6G 5Y3G
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: BK-106 changer P2 - Farnsworth Television & Radio
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 36.5 x 34.75 x 18.375 inch / 927 x 883 x 467 mm
Notes

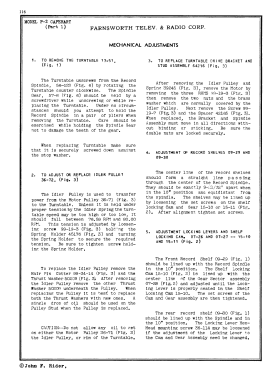

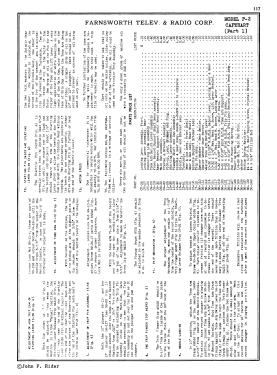

For the record changer see also this text about Capehart Radio-Phonographs, technical information Rider's page 113-122 for changer P2/P3.

Built in loop antenna. 7 push buttons.

External source of data Ernst Erb
Source of data Pre-War Consoles
Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Mentioned in Rider's Automatic Record Changers and Recorders (page 113-122 for changer P2/P3)


All listed radios etc. from Farnsworth Television & Radio Corp. - see also Capehart
Here you find 392 models, 278 with images and 321 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
