BK-110 Ch= C-32 , changer P2

BK-110 Ch= C-32 , changer P2  ; Farnsworth (ID = 338632) Radio

BK-110 Ch= C-32 , changer P2  ; Farnsworth (ID = 338633) Radio
BK-110 Ch= C-32 , changer P2  ; Farnsworth (ID = 706947) Radio BK-110 Ch= C-32 , changer P2  ; Farnsworth (ID = 1301250) Radio
Use red slider bar for more.
BK-110 Ch= C-32 , changer P2  ; Farnsworth (ID = 706947) Radio
Farnsworth: BK-110 Ch= C-32 , changer P2   [Radio] ID = 706947 484x628
Select picture or schematic to display from thumbnails on the right and click for download.
For model BK-110 Ch= C-32 , changer P2  , Farnsworth Television & Radio Corp. - see also Capehart:
Image Courtesy of Mark V. Stein for Radiomuseum.org use only.

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1940/1941 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 6SK7 6SA7 6J5GT 6SK7 6Q7 6SC7 6SC7 6V6G 6V6G 5Y3G 5Y3G
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: BK-110 Ch= C-32 , changer P2   - Farnsworth Television & Radio
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 33.25 x 42 x 17.5 inch / 845 x 1067 x 445 mm
Notes

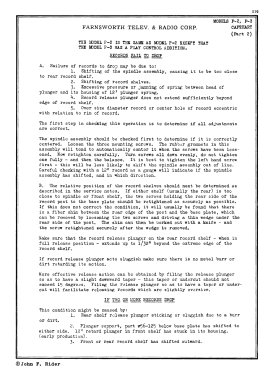

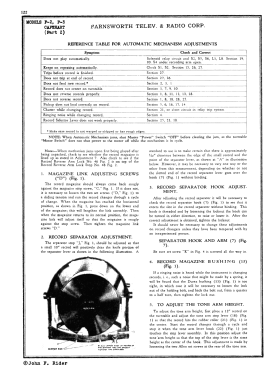

For the record changer see also this text about Capehart Radio-Phonographs, technical information Rider's page 113-122 for changer P2/P3.

Built in loop antenna. 7 push buttons.

Collectors' prices
External source of data Ernst Erb
Source of data Pre-War Consoles
Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Literature/Schematics (1) Rider's Automatic Record Changers and Recorders (page 113-122 for changer P2/P3)
