BK-88 changer P2
Farnsworth Television & Radio Corp. - see also Capehart
- Country
- United States of America (USA)
- Manufacturer / Brand
- Farnsworth Television & Radio Corp. - see also Capehart
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 40112

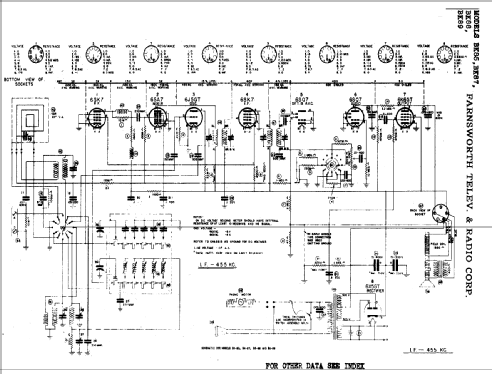

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: BK-88 changer P2 - Farnsworth Television & Radio
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 29.5 x 40.125 x 18.5 inch / 749 x 1019 x 470 mm
- Notes
-
For the record changer see also this text about Capehart Radio-Phonographs, technical information Rider's page 113-122 for changer P2/P3.
Built in loop antenna.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Literature/Schematics (1)
- Pre-War Consoles
- Literature/Schematics (2)
- Radio Retailing (Radio & Television R.) (January 1941.)
- Literature/Schematics (3)
- Rider's Automatic Record Changers and Recorders (page 113-122 for changer P2/P3)
