BT66

BT66 ; Farnsworth (ID = 340066) Radio

BT66 ; Farnsworth (ID = 340067) Radio
Use red slider bar for more.
BT66 ; Farnsworth (ID = 340066) Radio

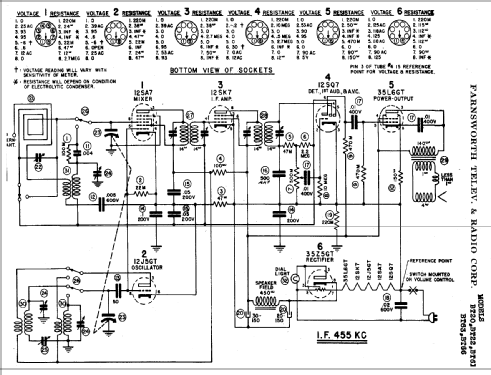

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1941 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SA7 12J5GT 12SK7 12SQ7 35L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: BT66 - Farnsworth Television & Radio
Notes Built in loop antenna.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
