Capehart 111M2FM Early Georgian

Capehart 111M2FM Early Georgian ; Farnsworth (ID = 1570670) Radio Capehart 111M2FM Early Georgian ; Farnsworth (ID = 1570669) Radio
Capehart 111M2FM Early Georgian ; Farnsworth (ID = 1318561) Radio Capehart 111M2FM Early Georgian ; Farnsworth (ID = 1305765) Radio
Capehart 111M2FM Early Georgian ; Farnsworth (ID = 1570673) Radio Capehart 111M2FM Early Georgian ; Farnsworth (ID = 1570674) Radio
Capehart 111M2FM Early Georgian ; Farnsworth (ID = 1416139) Radio Capehart 111M2FM Early Georgian ; Farnsworth (ID = 1416140) Radio
Capehart 111M2FM Early Georgian ; Farnsworth (ID = 1570671) Radio Capehart 111M2FM Early Georgian ; Farnsworth (ID = 1570672) Radio
Use red slider bar for more.

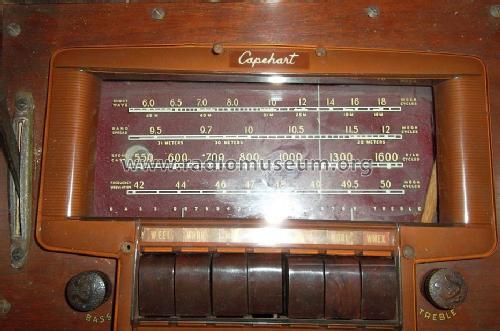

Capehart 111M2FM Early Georgian ; Farnsworth (ID = 1570670) Radio
Farnsworth: Capehart 111M2FM Early Georgian [Radio] ID = 1570670 700x676
Select picture or schematic to display from thumbnails on the right and click for download.
For model Capehart 111M2FM Early Georgian, Farnsworth Television & Radio Corp. - see also Capehart:
eBay auction 181271124106, seller boborann, Andover Massachusetts, USA.

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1941/1942 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Main principle Superhet with RF-stage
Details Record-Changer, both sides!
Power type and voltage Alternating Current supply (AC) / 105 - 125 Volt
Loudspeaker 2 Loudspeakers / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: Capehart 111M2FM Early Georgian - Farnsworth Television & Radio
Material Wooden case
Shape Console with any shape - in general
Notes

See here the "Common information for the Capehart model pages for the 1930s and 1940s" and for the information about Series 100 here. See the changer in Operation in this YouTube made by "thebinxster". The tuner has 11 tubes including the magic eye. Two 12" loudspeakers (81 64 12"). Changer has (often) no pot metal.

Literature/Schematics (2) The Incomparable Capehart

Model page created by Ernst Erb. See "Data change" for further contributors.
