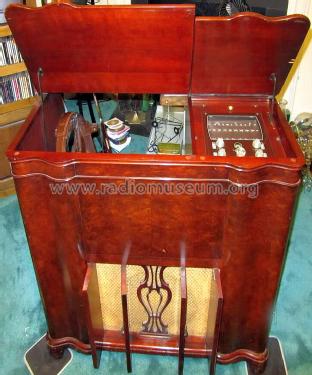

Capehart 112N2 George II ; Farnsworth (ID = 1304729) Radio
Farnsworth: Capehart 112N2 George II [Radio] ID = 1304729 933x1121
Select picture or schematic to display from thumbnails on the right and click for download.
For model Capehart 112N2 George II, Farnsworth Television & Radio Corp. - see also Capehart:
From kenbarbdae's album at photobucket, unable to contact him. Would like to have his OK for sharing here to the benefit of the collectors.

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1946–1948 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 25: 6SK7 6J5 6SA7 6SK7 6AF6 6SK7 6H6 6AG5 6C4 6AG5 6SK7 6SK7 6SK7 6H6 6SN7 6J7 6SN7 6J5 6J5 6J5 6J5 6L6G 6L6G 5U4G 5U4G
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Record-Changer, both sides!
Power type and voltage Alternating Current supply (AC) / 245 Watts, 60 cycles, 117 = 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 inch = 38.1 cm
Power out 18.5 W (undistorted)
from Radiomuseum.org Model: Capehart 112N2 George II - Farnsworth Television & Radio
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 40 x 40.75 x 23.75 inch / 1016 x 1035 x 603 mm
Notes

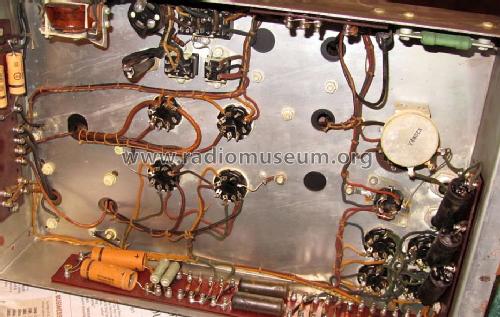

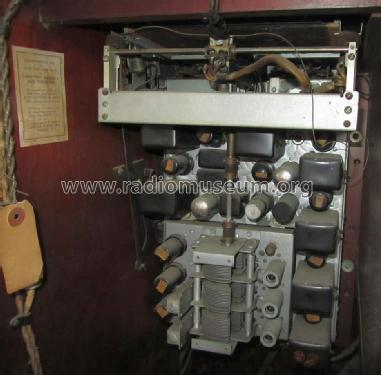

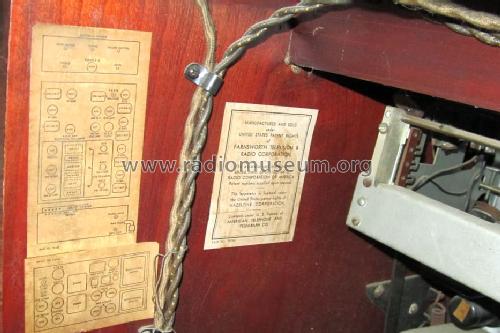

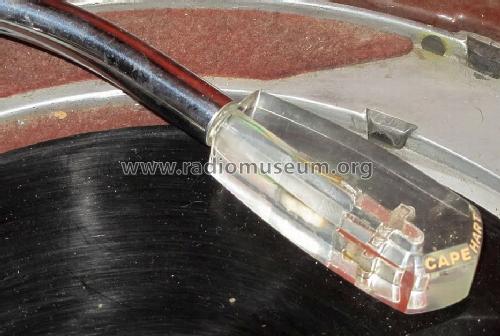

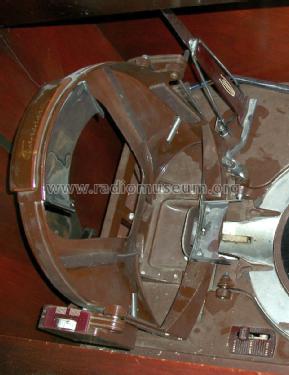

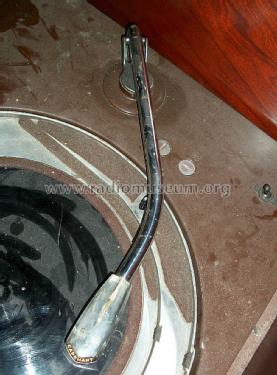

The Panamuse models 112N2 and 114N2 have 18 Watts undistorted power output for 8 ohms voice coil. Response linear from 50 to 12000 cycles. Alnico two cone loudspeaker of 15 + 5" coaxial. The combined voice-coil impedance of the 2 units is 8 ohms. Record changer 41-E. See here the "Common information for the Capehart model pages for the 1930s and 1940s". An overview about the Series 100 see here.

Price in first year of sale 1'495.00 $
Collectors' prices
Mentioned in The Incomparable Capehart
Literature/Schematics (1) Rider's Perpetual, Volume 18 = covering late 1947 to early 1948 (Riders 18-16 to 18-44)

Model page created by Dirk Taekels. See "Data change" for further contributors.
