Capehart-Panamuse Georgian 13M2AM Ch= M2AM = A-10

Capehart-Panamuse Georgian 13M2AM Ch= M2AM = A-10; Farnsworth (ID = 1288757) Radio

Capehart-Panamuse Georgian 13M2AM Ch= M2AM = A-10; Farnsworth (ID = 1288758) Radio

Capehart-Panamuse Georgian 13M2AM Ch= M2AM = A-10; Farnsworth (ID = 1288759) Radio

Capehart-Panamuse Georgian 13M2AM Ch= M2AM = A-10; Farnsworth (ID = 1288760) Radio

Capehart-Panamuse Georgian 13M2AM Ch= M2AM = A-10; Farnsworth (ID = 1288761) Radio
Capehart-Panamuse Georgian 13M2AM Ch= M2AM = A-10; Farnsworth (ID = 2290053) Radio Capehart-Panamuse Georgian 13M2AM Ch= M2AM = A-10; Farnsworth (ID = 2290054) Radio
Capehart-Panamuse Georgian 13M2AM Ch= M2AM = A-10; Farnsworth (ID = 1286366) Radio Capehart-Panamuse Georgian 13M2AM Ch= M2AM = A-10; Farnsworth (ID = 1286365) Radio
Capehart-Panamuse Georgian 13M2AM Ch= M2AM = A-10; Farnsworth (ID = 1286364) Radio Capehart-Panamuse Georgian 13M2AM Ch= M2AM = A-10; Farnsworth (ID = 1286368) Radio
Capehart-Panamuse Georgian 13M2AM Ch= M2AM = A-10; Farnsworth (ID = 2290055) Radio Capehart-Panamuse Georgian 13M2AM Ch= M2AM = A-10; Farnsworth (ID = 2290056) Radio
Capehart-Panamuse Georgian 13M2AM Ch= M2AM = A-10; Farnsworth (ID = 2290057) Radio Capehart-Panamuse Georgian 13M2AM Ch= M2AM = A-10; Farnsworth (ID = 2290058) Radio
Use red slider bar for more.
Capehart-Panamuse Georgian 13M2AM Ch= M2AM = A-10; Farnsworth (ID = 2290053) Radio
Farnsworth: Capehart-Panamuse Georgian 13M2AM Ch= M2AM = A-10 [Radio] ID = 2290053 1400x1382

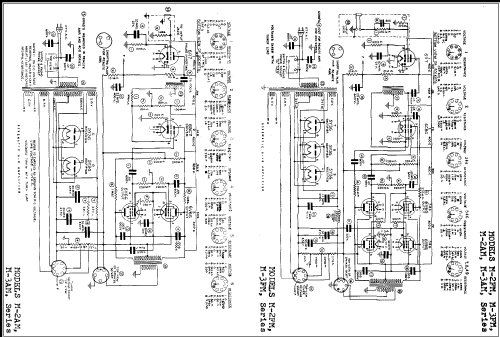

Select picture or schematic to display from thumbnails on the right and click for download.
For model Capehart-Panamuse Georgian 13M2AM Ch= M2AM = A-10, Farnsworth Television & Radio Corp. - see also Capehart

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1941/1942 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 15: 6SK7 6J5 6SA7 6SK7 6U5 6Q7 6R7 6C8G 6V6G 6V6G 6V6G 6V6G 5Y3G 5Y3G 5Y3G
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker 2 Loudspeakers / Ø 12 inch = 30.5 cm
Power out 20 W (unknown quality)
from Radiomuseum.org Model: Capehart-Panamuse Georgian 13M2AM Ch= M2AM = A-10 - Farnsworth Television & Radio
Material Wooden case

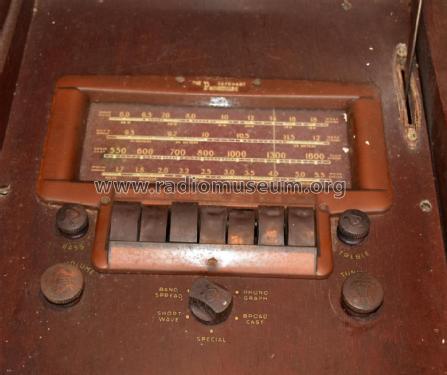

Shape Console with Push Buttons.
Dimensions (WHD) 40.5 x 37 x 18.5 inch / 1029 x 940 x 470 mm
Notes The model Capehart-Panamuse Georgian 13-M-2 exists for AM only or combined with FM reception. This chassis M-2-AM is for AM only and has 5 tubes less than the AM-FM chassis. The M-2-AM receives BB, 2 x SW plus Band spread. M-2 is the amplifier A-10 with 9 tubes and two speakers. See details and summaries in this common text for Capehart Radio-Phonographs. Post 3 is specific for this last pre war model family and the changer used.

6-tube AM tuner chassis: 6SK7 RF, 6J5 osc, 6SA7 converter, 6SK7 IF, 6U5 mag. eye, 6Q7 det-AVC-1st audio. Added is the 9-tube M-2 amplifier A-10: 6R7 phase inverter, 6C8G duo driver, 4 x 6V6G and 3 x 5Y3G. Total is 15 tubes, 20 watts output. See Rider's Capehart-Farnsworth page 20-1 to 20-16 for the tuners and amplifiers.
Net weight (2.2 lb = 1 kg) 161 lb (161 lb 0 oz) / 73.094 kg
Mentioned in Rider's Perpetual, Volume 20 = covering 1950 (Capehart, series M-2, A-10)
