CK-75 Consolette Ch= C118-3
Farnsworth Television & Radio Corp. - see also Capehart
- Country
- United States of America (USA)
- Manufacturer / Brand
- Farnsworth Television & Radio Corp. - see also Capehart
- Year
- 1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 40141
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: CK-75 Consolette Ch= C118-3 - Farnsworth Television & Radio
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 33.5 x 28.25 x 17.6 inch / 851 x 718 x 447 mm
- Notes
- Built in loop antenna.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Mentioned in
- Pre-War Consoles
- Literature/Schematics (1)

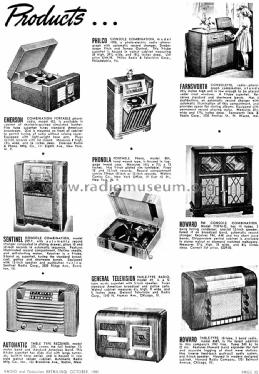

- Radio Retailing (Radio & Television R.) (August 1941, September 1941 page 45, November 1941 page 53.)
