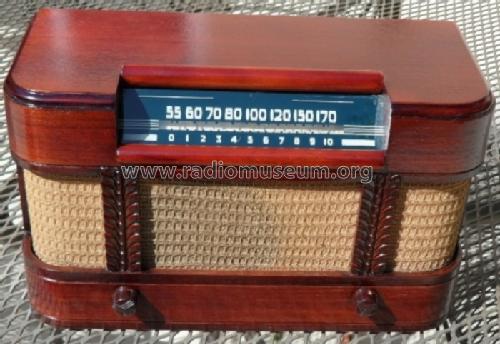

Farnsworth: DT-55 [Radio] ID = 958860 700x482
Select picture or schematic to display from thumbnails on the right and click for download.
For model DT-55, Farnsworth Television & Radio Corp. - see also Capehart

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1942 ?? Category: Broadcast Receiver - or past WW2 Tuner

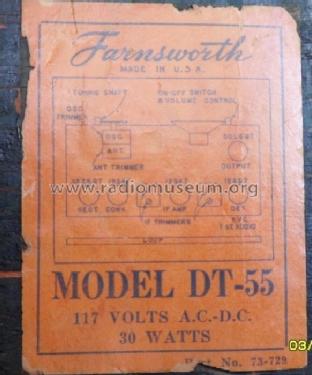

Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out 2.1 W (unknown quality)
from Radiomuseum.org Model: DT-55 - Farnsworth Television & Radio

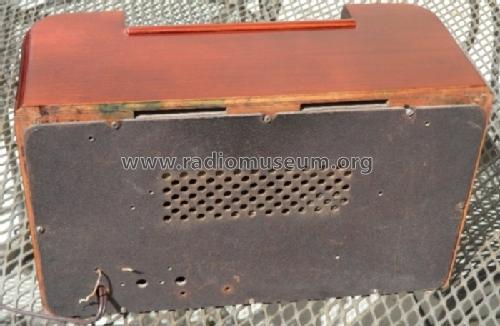

Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 13.25 x 8 x 5.75 inch / 337 x 203 x 146 mm
Notes This model is not in Riders. It has a built-in loop antenna. It does not have a power transformer, but not a "hot" chassis design. The circuit is the same as, or similar to, that of Models BT-52, BT-53, BT-54, BT-55, and BT-56.
