• Country
• United States of America (USA)

• Manufacturer / Brand
• Farnsworth Television & Radio Corp. - see also Capehart

• Year
• 1941 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 361869

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SS7 6SS7 12SA7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Material
• Wooden case

• from Radiomuseum.org

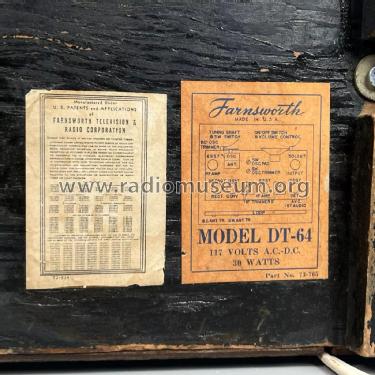

• Model: DT-64 - Farnsworth Television & Radio

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 14.5 x 8.5 x 7 inch / 368 x 216 x 178 mm

• Notes

• Very similar model is the Farnsworth CT-64.

• Author
• Model page created by Glen Orriss. See "Data change" for further contributors.
