• Year
  • 1951 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 40232

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org

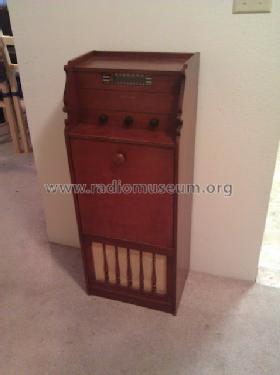

  • Model: K-262P - Farnsworth Television & Radio
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • The Farnsworth model K-262K was also available as model K-262 - without a phonograph. The radio chassis is for AC/DC but the record changer type P-73 makes the model to an AC model. There are three possible cabinets: Mahagoni (H-313-1), Walnut (H-313-2) and Maple (H-313-3).
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 19 = 1949 and before
