MFR1; Favarger & Co.; (ID = 2660) Radio
Favarger & Co.;: MFR1 [Radio] ID = 2660 586x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model MFR1, Favarger & Co.; Neuchâtel

Country:  Switzerland
Manufacturer / Brand:  Favarger & Co.; Neuchâtel
Year: 1925/1926 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 1: A410
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: MFR1 - Favarger & Co.; Neuchâtel

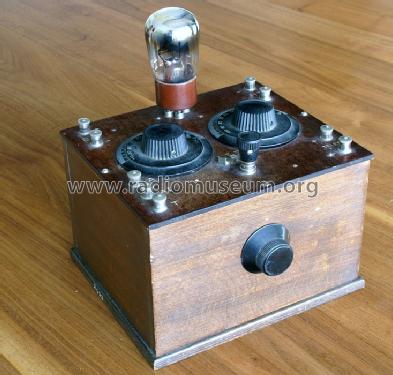

Material Wooden case, TUBES VISIBLE.
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 190 x 220 x 170 mm / 7.5 x 8.7 x 6.7 inch
Notes 2 Variometer von oben zu bedienen (Abst. + Rückk.) plus 3-Pos-Wellenschalter; Heizregler 30 Ohm vorne. Später A409 statt A410. Masse und Gewicht mit der Röhre.
Net weight (2.2 lb = 1 kg) 1.760 kg / 3 lb 14 oz (3.877 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Favarger & Co.; Neuchâtel
Here you find 14 models, 7 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
