Fellocryst Super

Fellocryst Super; Fellows Magneto Co. (ID = 1747232) Crystal Fellocryst Super; Fellows Magneto Co. (ID = 138156) Crystal
Fellocryst Super; Fellows Magneto Co. (ID = 198146) Crystal Fellocryst Super; Fellows Magneto Co. (ID = 1092729) Crystal
Fellocryst Super; Fellows Magneto Co. (ID = 1092731) Crystal Fellocryst Super; Fellows Magneto Co. (ID = 1092733) Crystal
Fellocryst Super; Fellows Magneto Co. (ID = 1747223) Crystal Fellocryst Super; Fellows Magneto Co. (ID = 1747224) Crystal
Fellocryst Super; Fellows Magneto Co. (ID = 1747225) Crystal Fellocryst Super; Fellows Magneto Co. (ID = 1747226) Crystal
Use red slider bar for more.
Fellocryst Super; Fellows Magneto Co. (ID = 1747232) Crystal
Fellows Magneto Co.: Fellocryst Super [Crystal] ID = 1747232 1310x1066
Select picture or schematic to display from thumbnails on the right and click for download.

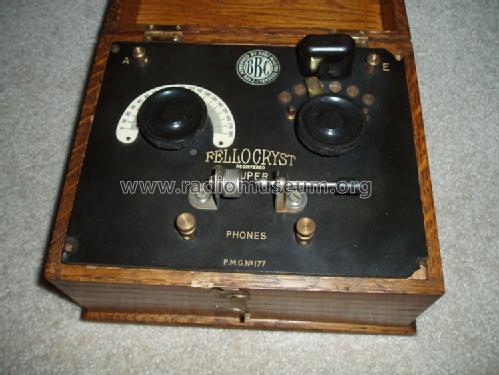

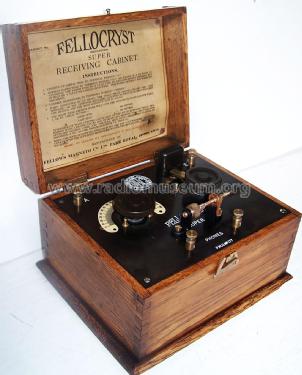

For model Fellocryst Super, Fellows Magneto Co. Ltd. (Fellophone); London:
Note the rectangular BBC label! / Ebay auction by user tomazx1912 271602038961

Country:  Great Britain (UK)
Manufacturer / Brand:  Fellows Magneto Co. Ltd. (Fellophone); London
Year: 1922 Category: Detector-Radio (Crystal or diode, without tubes/transistors)
Main principle Crystal or Solid State Detector
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Fellocryst Super - Fellows Magneto Co. Ltd.
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 9 x 5.75 x 6.5 inch / 229 x 146 x 165 mm
Notes For LW (Paris time signals 2600 m) is a plug in extension coil available. BBC/PMG stamp, GPO No.177; see also Super new type.
Collectors' prices
Source of data Tickling the Crystal; Sanders
Mentioned in Radio! Radio!

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.



All listed radios etc. from Fellows Magneto Co. Ltd. (Fellophone); London
Here you find 24 models, 14 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
