• Country
• Finland

• Manufacturer / Brand
• Fenno, Helsinki - see also Philips

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 279710

• Number of Transistors
• 8

• Semiconductors

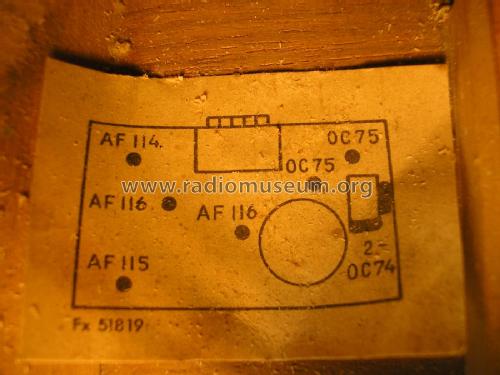

• AF114 AF115 AF116 AF116 OC75 OC75 OC74 OC74 OA79 OA79 OA79 OA79

• Main principle
• Superheterodyne (common); ZF/IF 460/6750 kHz; 3 AF stage(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

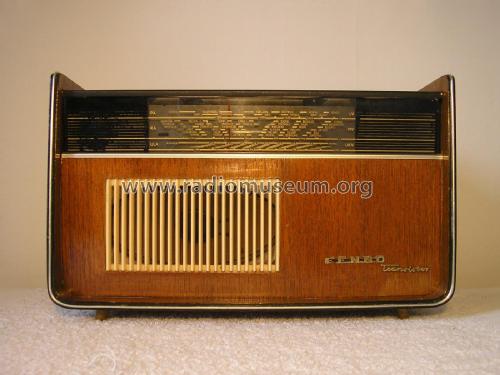

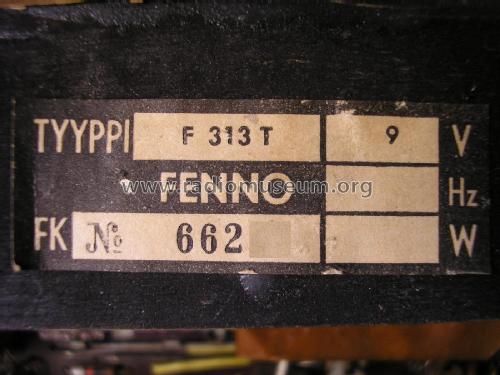

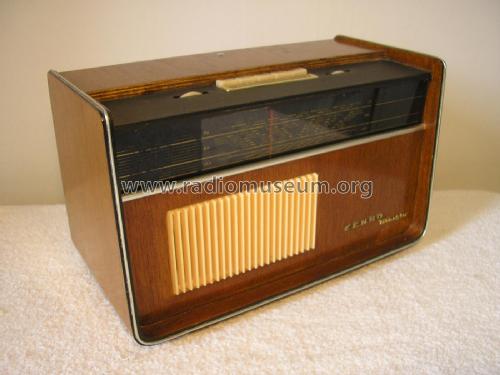

• Model: F313T - Fenno, Helsinki - see also

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 365 x 230 x 195 mm / 14.4 x 9.1 x 7.7 inch

• Author
• Model page created by Timo Rantasaari. See "Data change" for further contributors.

• Other Models

• Here you find 149 models, 129 with images and 23 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
