• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London

• Year
• 1967 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 226525

• • Brand: TRF

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BF216 BF217 BF220 BF218 BF219 BF219 AC155 AC113 AC169 AC154 AC154

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Storage and/or dry batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

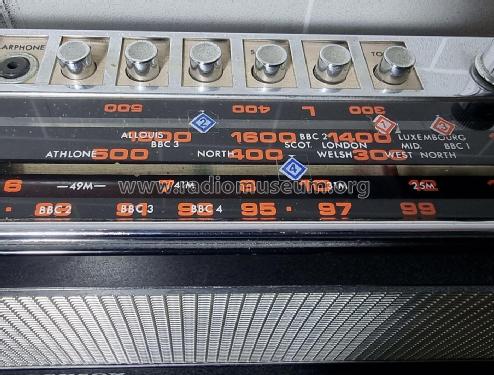

• Model: Caravelle 3156 - Ferguson Brand, Ferguson Radio

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Elliptical loudspeaker 5 x 3 inch.

• Source of data
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.)

• Author
• Model page created by Ernst Röggla. See "Data change" for further contributors.
