10-Transistor 3160 (Japan 609)

10-Transistor 3160 ; Ferguson Radio (ID = 2306251) Radio

10-Transistor 3160 ; Ferguson Radio (ID = 2306252) Radio

10-Transistor 3160 ; Ferguson Radio (ID = 2306253) Radio

10-Transistor 3160 ; Ferguson Radio (ID = 2306254) Radio

10-Transistor 3160 ; Ferguson Radio (ID = 1337292) Radio

10-Transistor 3160 ; Ferguson Radio (ID = 1337293) Radio

10-Transistor 3160 ; Ferguson Radio (ID = 1337294) Radio

10-Transistor 3160 ; Ferguson Radio (ID = 1337295) Radio
10-Transistor 3160 ; Ferguson Radio (ID = 1904891) Radio 10-Transistor 3160 ; Ferguson Radio (ID = 1904892) Radio
10-Transistor 3160 ; Ferguson Radio (ID = 1904895) Radio 10-Transistor 3160 ; Ferguson Radio (ID = 1904893) Radio
10-Transistor 3160 ; Ferguson Radio (ID = 1904894) Radio 10-Transistor 3160 ; Ferguson Radio (ID = 1904896) Radio
10-Transistor 3160 ; Ferguson Radio (ID = 1457845) Radio
Use red slider bar for more.
10-Transistor 3160 ; Ferguson Radio (ID = 1904891) Radio
Ferguson Radio: 10-Transistor 3160 [Radio] ID = 1904891 1400x845
Select picture or schematic to display from thumbnails on the right and click for download.
For model 10-Transistor 3160 (Japan 609), Ferguson Radio Corporation Ltd., London:
Pictures sent by guest Richard Harrison.

Country:  Great Britain (UK)
Manufacturer / Brand:  Ferguson Radio Corporation Ltd., London
Brand

TRF
Year: 1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: 2SA440 2SA440 2SA15 2SA233 2SA351 2SA233 2SB75 2SB75 2SB77 2SB77
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / AA: 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: 10-Transistor 3160 - Ferguson Radio Corporation Ltd
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 206 x 95 x 55 mm / 8.1 x 3.7 x 2.2 inch
Notes

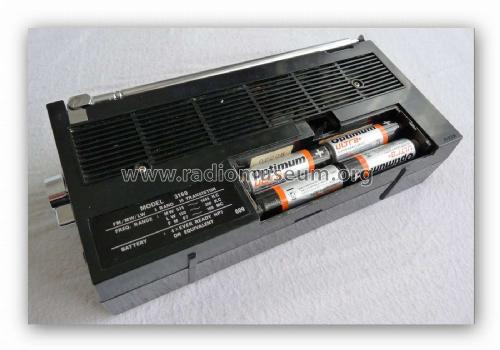

A ten transistor battery portable radio covering MW, LW and VHF. Supplied with carry case, shoulder strap and earphone. Sockets for two earphones.

We believe that the number 609 on the label is a Japanese Radio Manufacturers Code and we entered it in this forum thread (see also the other link in German). See "JAPAN" embossed on the rear - on the other side from the sticker with the details and the Japan number 609.

Net weight (2.2 lb = 1 kg) 0.777 kg / 1 lb 11.4 oz (1.711 lb)
Source of data Trader Service Sheet (suppl. of Wireless & El. Trader, etc.)
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1867 dated 16 August 1968)
Literature/Schematics (2) ERT Service Chart 1642 dated May 2 1968

Model page created by Ernst Röggla. See "Data change" for further contributors.



All listed radios etc. from Ferguson Radio Corporation Ltd., London
Here you find 392 models, 258 with images and 257 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
