For model 3188, Ferguson Radio Corporation Ltd., London:

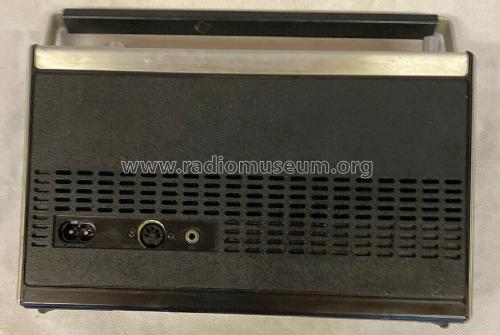

My Ferguson 3188 MW/LW/SW/FM mains/battery 10 transistor radio in its black plastic case with aluminium trim. These radios work well and were popular in the UK in the late 1970s.

Country:  Great Britain (UK)
Manufacturer / Brand:  Ferguson Radio Corporation Ltd., London
Brand

TRF
Year: 1978 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: M193 BT1 2SC535 2SC461 2SC460 2SC460 CS1312 2SB423 CS1312 AC187 AC188
Main principle Superheterodyne (common); ZF/IF 470 kHz; 10700 AF stage(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details

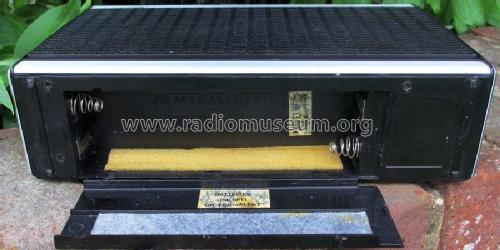

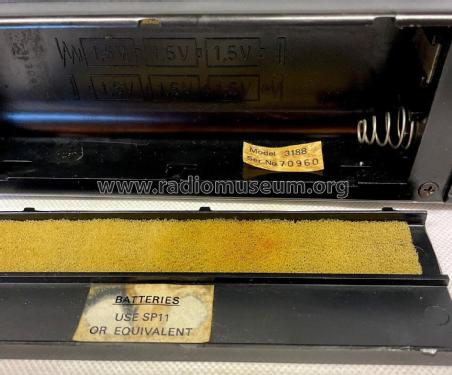

Power type and voltage Line / Batteries (any type) / 240 / (6 × 1,5) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 11.5 cm = 4.5 inch
Power out
from Radiomuseum.org Model: 3188 - Ferguson Radio Corporation Ltd
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 265 x 165 x 70 mm / 10.4 x 6.5 x 2.8 inch
Notes

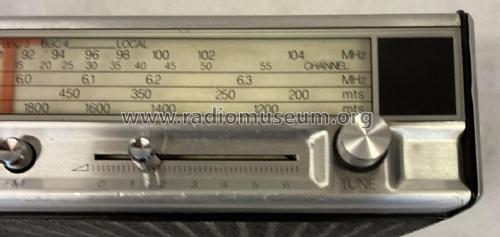

FM coverage is 88 to 104 MHz, SW coverage is 5.95 to 6.3 MHz.

Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
Mentioned in -- Collector info (Sammler)

Model page created by Howard Craven. See "Data change" for further contributors.
