• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London

• Year
• 1966 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 180406

• • Brand: TRF

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 26

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 475/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• 4 Loudspeakers

• from Radiomuseum.org

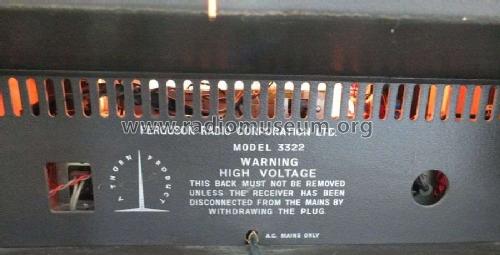

• Model: 3322 - Ferguson Brand, Ferguson Radio

• Notes

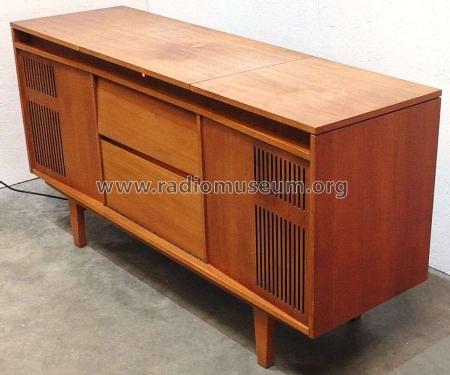

• Stereo radiogram (mono radio) fitted with Garrard type 3000LM record changer unit. Wavebands LW; MW; SW 16.5-51.5m; VHF 87.5-101MHz.

• Source of data
• -- Schematic

• Literature/Schematics (1)
• Radio And Television Servicing books (R&TVS)

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
