342BU

342BU; Ferguson Radio (ID = 557799) Radio

342BU; Ferguson Radio (ID = 557800) Radio

342BU; Ferguson Radio (ID = 1027389) Radio

342BU; Ferguson Radio (ID = 1027391) Radio
342BU; Ferguson Radio (ID = 371322) Radio 342BU; Ferguson Radio (ID = 371323) Radio
342BU; Ferguson Radio (ID = 371324) Radio
Use red slider bar for more.
342BU; Ferguson Radio (ID = 371322) Radio
Ferguson Radio: 342BU [Radio] ID = 371322 409x700
Select picture or schematic to display from thumbnails on the right and click for download.

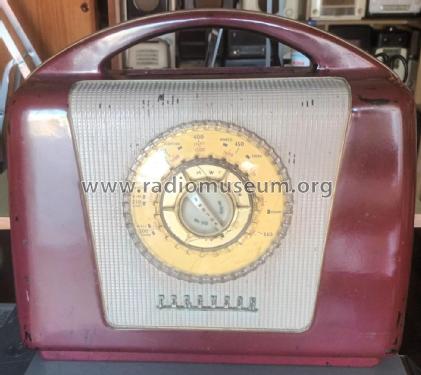

For model 342BU, Ferguson Radio Corporation Ltd., London:
eBay: pauld8500 (GB). #6610580091 (Bilder bearbeitet)

Country:  Great Britain (UK)
Manufacturer / Brand:  Ferguson Radio Corporation Ltd., London
Brand

TRF
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK96 DF96 DAF96 DL96
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz; 2 AF stage(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 200-250 / 7.5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 342BU - Ferguson Radio Corporation Ltd
Material Bakelite case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 280 x 140 mm / 12.6 x 11 x 5.5 inch
Notes Line AC & DC, or dry cell batteries. Metal rectifier.
Net weight (2.2 lb = 1 kg) 3.025 kg / 6 lb 10.6 oz (6.663 lb)
Price in first year of sale 13.00 GBP
Collectors' prices
Source of data -- Collector info (Sammler)
Mentioned in -- Original-techn. papers.

Model page created by Peter Hoddow. See "Data change" for further contributors.
