• Year
  • 1960
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 103059
    • Brand: TRF

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / 2 × 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org

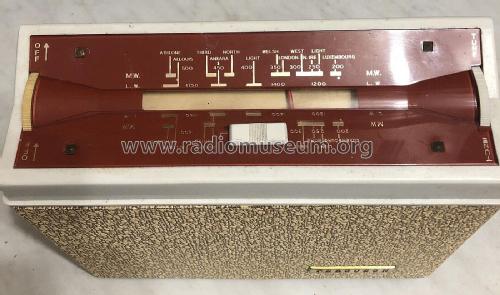

  • Model: 349BT - Ferguson Brand, Ferguson Radio
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes
  • Transistors: OC44, 2× OC45, OC81D, 2× OC81.
  • Mentioned in
  • -- Original-techn. papers.
  • Literature/Schematics (2)
  • Trader sheet 1480
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
