Auto Twin 3124

Auto Twin 3124; Ferguson Radio (ID = 774533) Radio

Auto Twin 3124; Ferguson Radio (ID = 774534) Radio

Auto Twin 3124; Ferguson Radio (ID = 774535) Radio
Auto Twin 3124; Ferguson Radio (ID = 1265674) Radio Auto Twin 3124; Ferguson Radio (ID = 1265675) Radio
Auto Twin 3124; Ferguson Radio (ID = 1265676) Radio
Use red slider bar for more.
Auto Twin 3124; Ferguson Radio (ID = 1265674) Radio
Ferguson Radio: Auto Twin 3124 [Radio] ID = 1265674 800x593
Select picture or schematic to display from thumbnails on the right and click for download.
For model Auto Twin 3124, Ferguson Radio Corporation Ltd., London

Country:  Great Britain (UK)
Manufacturer / Brand:  Ferguson Radio Corporation Ltd., London
Brand

TRF
Year: 1965 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF117 AF117 AF117 AF117 AC155 AC113 AC154 AC154 AC169
Main principle Superheterodyne (common); ZF/IF 475 kHz; 3 AF stage(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Auto Twin 3124 - Ferguson Radio Corporation Ltd
Notes Portable radio Fitted with sockets for car aerial & earphone. Especially designed for car use. Battery type PP9.
Source of data -- Schematic

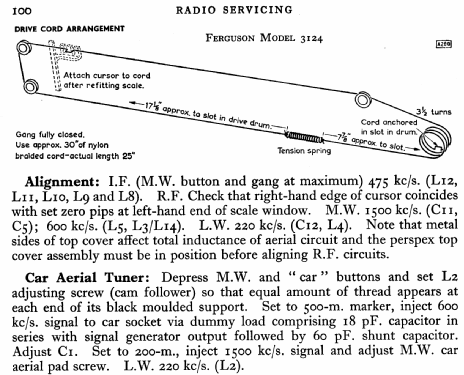

Circuit diagram reference Radio and TV Servicing books (R&TVS) book

Model page created by Keith Staines. See "Data change" for further contributors.
