• Year
  • 1964
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 103098
    • Brand: TRF

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 475/10700 kHz; 3 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)     7 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.8 W (unknown quality)
  • from Radiomuseum.org

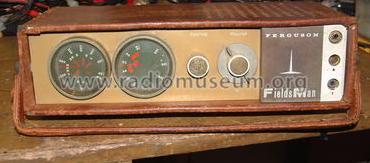

  • Model: Fieldsman 3128 - Ferguson Brand, Ferguson Radio
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes
  • Price £17.12s.11d. plus Tax.
  • Price in first year of sale
  • 18.00 GBP
  • Circuit diagram reference
  • Radio and TV Servicing books (R&TVS) book
  • Mentioned in
  • -- Original-techn. papers.
  • Literature/Schematics (1)
  • Trader Sheet 1688
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
