• Country
• France

• Manufacturer / Brand
• Ferisol; Paris

• Year
• 1959

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 200628

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6AU6 6AQ5 6AQ5 6AQ5 5R4GY 6X4 85A2 85A2

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org

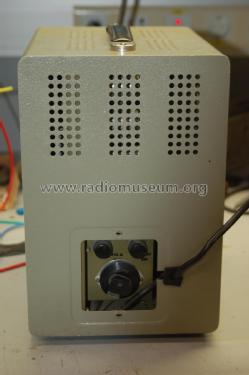

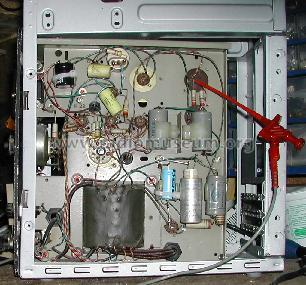

• Model: Alimentation Haute Tension CF201D - Ferisol; Paris

• Dimensions (WHD)
• 280 x 200 x 305 mm / 11 x 7.9 x 12 inch

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Claude Brunet. See "Data change" for further contributors.
