• Country
• France

• Manufacturer / Brand
• Ferisol; Paris

• Year
• 1973

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 200756

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

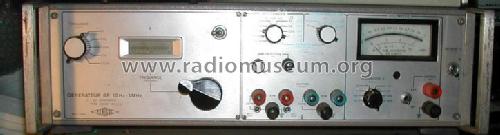

• Model: Generateur C903T - Ferisol; Paris

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 142 x 365 mm / 17.3 x 5.6 x 14.4 inch

• Notes

• Générateur signal sinusoïdal ou carré de 10Hz à 1MHz.

• Net weight (2.2 lb = 1 kg)
• 11.5 kg / 25 lb 5.3 oz (25.33 lb)

• Source of data
• - - Data from my own collection

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Claude Brunet. See "Data change" for further contributors.
