• Country
• Germany

• Manufacturer / Brand
• Fernfunk, Gesellschaft für drahtlose Telefonie mbH; Berlin

• Year
• 1929/1930

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 14538

• • Brand: GRB, Ges. für Radiobedarf mbH

• Number of Tubes
• 4

• Valves / Tubes
• REN904 REN904 RE134

• Main principle
• TRF with regeneration; 2 AF stage(s); something special ? Please give information (notes)

• Tuned circuits
• 1 AM circuit(s)

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

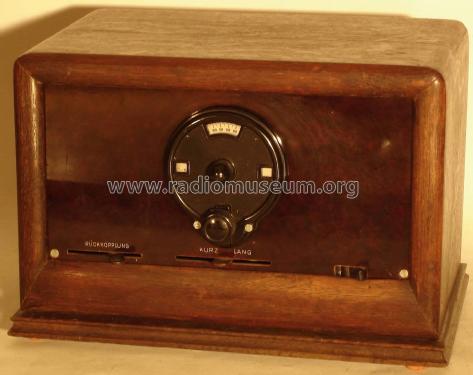

• Model: Corona W - Fernfunk, Gesellschaft für

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 310 x 210 x 185 mm / 12.2 x 8.3 x 7.3 inch

• Net weight (2.2 lb = 1 kg)
• 4.3 kg / 9 lb 7.5 oz (9.471 lb)

• Price in first year of sale
• 158.00 RM !

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Röhren in FS-Bestückungstabellen

• Mentioned in
• Der Radio-Händler / Der Rundfunk-Händler (ab Jan. 1939) (2920)

• Picture reference
• Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.

• Other Models

• Here you find 66 models, 41 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Fernfunk, Gesellschaft für drahtlose Telefonie mbH; Berlin
