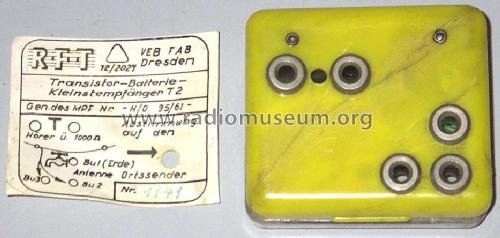

Transistor-Batterie-Kleinstempfänger T2

Fernmelde-Anlagenbau Dresden, VEB (Ostd.)

  • Year
  • 1961 ?
  • Category
  • Detector-Radio (Crystal or diode, without tubes/transistors)
  • Radiomuseum.org ID
  • 72863

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 1
  • Main principle
  • Crystal or Solid State Detector with Amplifer
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries / 1,5 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Transistor-Batterie-Kleinstempfänger T2 - Fernmelde-Anlagenbau Dresden,
  • Dimensions (WHD)
  • 60 x 20 x 55 mm / 2.4 x 0.8 x 2.2 inch
  • Notes
  • Ortssender-Einstellung durch Trimmer; Batterie R6.
  • Price in first year of sale
  • 25.00 DM
  • Source of data
  • -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
  • Author
  • Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
