• Country
• Germany

• Manufacturer / Brand
• Fern, Radio-, GmbH, Essen

• Year
• 1960 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 142637

• • Brand: Radio FERN El

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• EC92

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Resonanzmesser RM2 - Fern, Radio-, GmbH, Essen

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 75 x 55 x 200 mm / 3 x 2.2 x 7.9 inch

• Notes

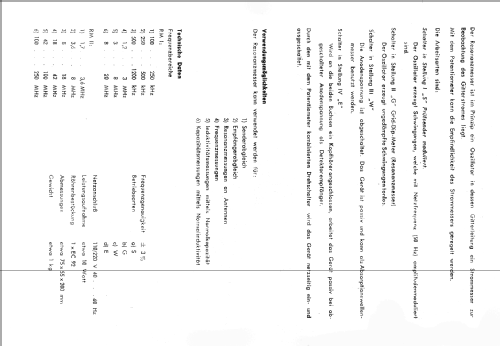

• Verwendungsmöglichkeiten: Senderabgleich, Empfängerabgleich, Resonanzmessung, Frequenzmessung, Induktivitäsmessung, Kapazitäsmessung; 6 Frequenzbereichen von 1,7 MHz bis 250 MHz.
  Siehe auch bei RM2.

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
