Chromat 2060

Chromat 2060; Stern-Radio Staßfurt (ID = 1247624) Television

Chromat 2060; Stern-Radio Staßfurt (ID = 1247625) Television

Chromat 2060; Stern-Radio Staßfurt (ID = 1247626) Television

Chromat 2060; Stern-Radio Staßfurt (ID = 1247627) Television
Chromat 2060; Stern-Radio Staßfurt (ID = 1245992) Television Chromat 2060; Stern-Radio Staßfurt (ID = 572431) Television
Chromat 2060; Stern-Radio Staßfurt (ID = 1250719) Television
Use red slider bar for more.
Chromat 2060; Stern-Radio Staßfurt (ID = 1245992) Television
Stern-Radio Staßfurt: Chromat 2060 [Television] ID = 1245992 906x536

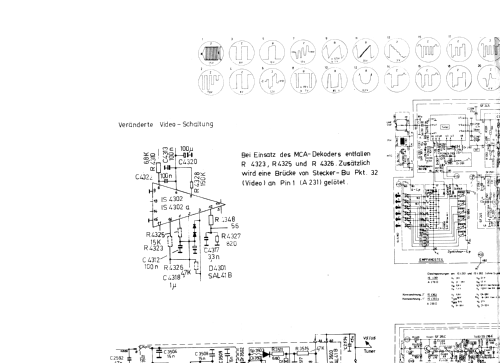

Select picture or schematic to display from thumbnails on the right and click for download.
For model Chromat 2060, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...:
Chromat 2060 Prospektbild

Country:  Germany
Manufacturer / Brand:  Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
alternative name

Fernsehgerätewerk Staßfurt
Year: 1978 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: 61ЛК3Ц
Semiconductors (the count is only for transistors) 47:
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Chromat 2060 - Stern-Radio Staßfurt, VEB, RFT
Material Various materials
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 750 x 520 x 520 mm / 29.5 x 20.5 x 20.5 inch
Notes Modell Chromat 2060 ist ein CCIR-Secam IIIb - Farbfernsehempfänger von "VEB Fernsehgerätewerk Stassfurt". Bildträger 38,9 MHz, Tonträger 33,4 MHz, VHF-Kanäle 2...12 und UHF 21...39. 6-teiliger Senderspeicher, 90°-Lochmaskenbildröhre 61 cm, Hochspannung über Selenkaskade, Zeilenfangautomatik, Bildgrößenstabilisierung, Stabilisierung der Hochspannung, Entmagnetisierungsschaltung, AGC, AFC. Als Bildröhre wurden beim Chromat 2060 verschiedene Typen verwendet.
Net weight (2.2 lb = 1 kg) 48 kg / 105 lb 11.6 oz (105.727 lb)
Price in first year of sale 3'500.00 M
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) Service-DVD Funkverlag B. Hein

Model page created by Wolfgang Lill. See "Data change" for further contributors.
