A1149

A1149; Ferranti, GB (ID = 1669107) Radio A1149; Ferranti, GB (ID = 1669108) Radio
A1149; Ferranti, GB (ID = 1669109) Radio
Use red slider bar for more.
A1149; Ferranti, GB (ID = 1669107) Radio
Ferranti, GB: A1149 [Radio] ID = 1669107 933x719
Select picture or schematic to display from thumbnails on the right and click for download.
For model A1149, Ferranti, GB:
photo with permission of owner

Country:  Great Britain (UK)
Manufacturer / Brand:  Ferranti, GB
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF115 AF117 AF117 OC75 AC128 AC128 AC176
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: A1149 - Ferranti, GB
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 330 x 230 x 165 mm / 13 x 9.1 x 6.5 inch
Notes

See also:  Ekco A445

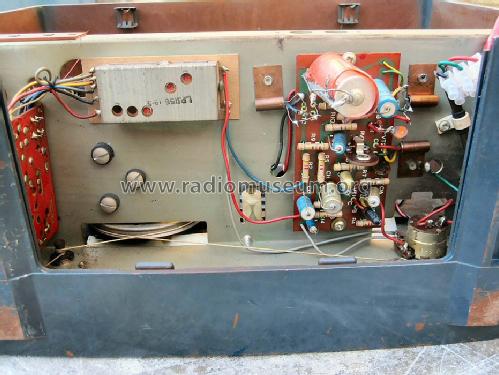

The first 3 transistors are in Mullard IF module LP1156.

Model page created by a member from GB. See "Data change" for further contributors.
