• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ferranti, GB

• Year
• 1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78276

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• VHT4 VPT4 H4D LP4 R4

• Conflicting model year with tube data.
• The model date contradicts tube dates. [ VHT4 (1935)]

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org

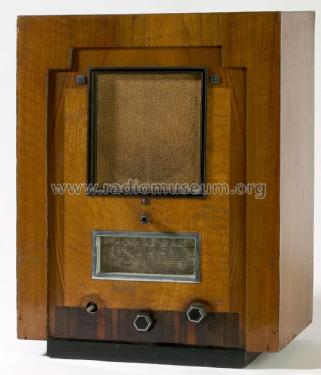

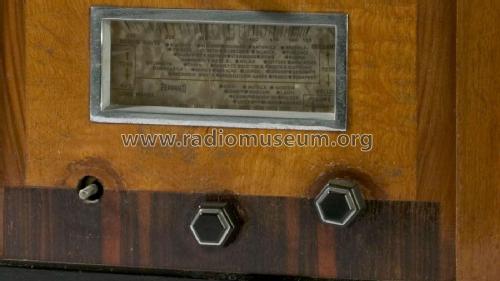

• Model: Arcadia T1/AC - Ferranti, GB

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 15.5 x 20.5 x 9.25 inch / 394 x 521 x 235 mm

• Notes
• also T2/AC (same cabinet, slightly modified circuit).

• Source of data
• Radio! Radio!

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
