PT1056

PT1056; Ferranti, GB (ID = 597540) Radio

PT1056; Ferranti, GB (ID = 597541) Radio
PT1056; Ferranti, GB (ID = 1592403) Radio PT1056; Ferranti, GB (ID = 1592399) Radio

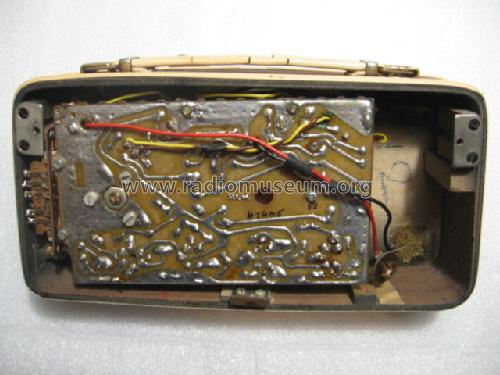

PT1056; Ferranti, GB (ID = 1592401) Radio PT1056; Ferranti, GB (ID = 1592404) Radio

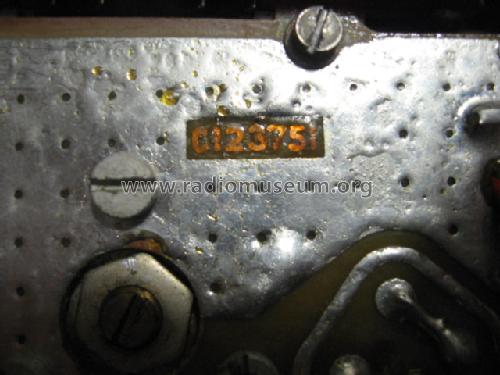

PT1056; Ferranti, GB (ID = 1592405) Radio PT1056; Ferranti, GB (ID = 1592406) Radio
PT1056; Ferranti, GB (ID = 1592407) Radio
Use red slider bar for more.

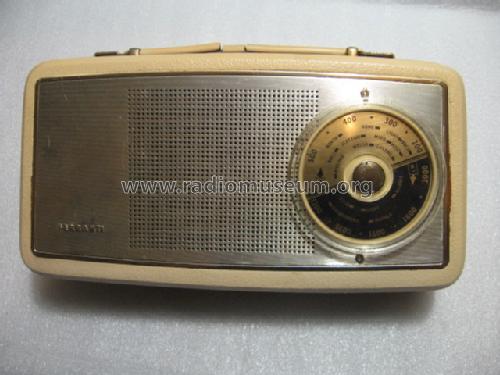

PT1056; Ferranti, GB (ID = 1592403) Radio
Ferranti, GB: PT1056 [Radio] ID = 1592403 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model PT1056, Ferranti, GB

Country:  Great Britain (UK)
Manufacturer / Brand:  Ferranti, GB
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: OC44 OC45 OC45 OC81D OC81 OC81
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: PT1056 - Ferranti, GB
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 245 x 130 x 75 mm / 9.6 x 5.1 x 3 inch
Notes Similar to Ekco model PT378. Transistors Mullard "OC" types or Newmarket NKT152, NKT153/35, NKT154/35, NKT254, NKT251, NKT251.
Price in first year of sale 16.00 GBP
Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book

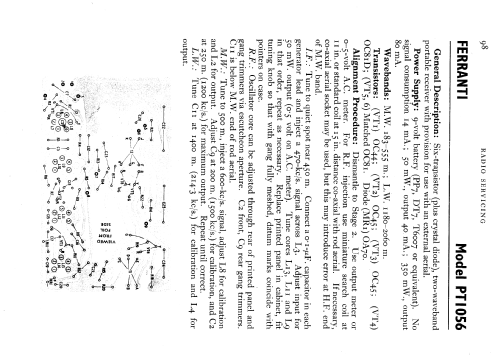

Literature/Schematics (1) ERT Sheet 1341.

Model page created by Keith Staines. See "Data change" for further contributors.
