RP1008

Ferranti, GB

  • Year
  • 1958 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 148458

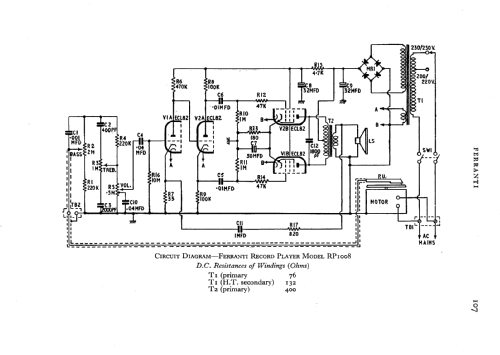

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: RP1008 - Ferranti, GB
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

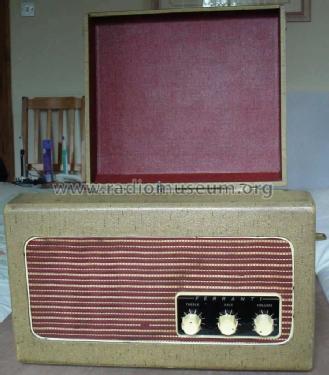

  • Portable record player fitted with Garrard RC120H/4 or RC120 MkII, or Collaro "Conquest" four speed record changer.
  • Source of data
  • -- Schematic
  • Circuit diagram reference
  • Radio and TV Servicing books (R&TVS) book
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
